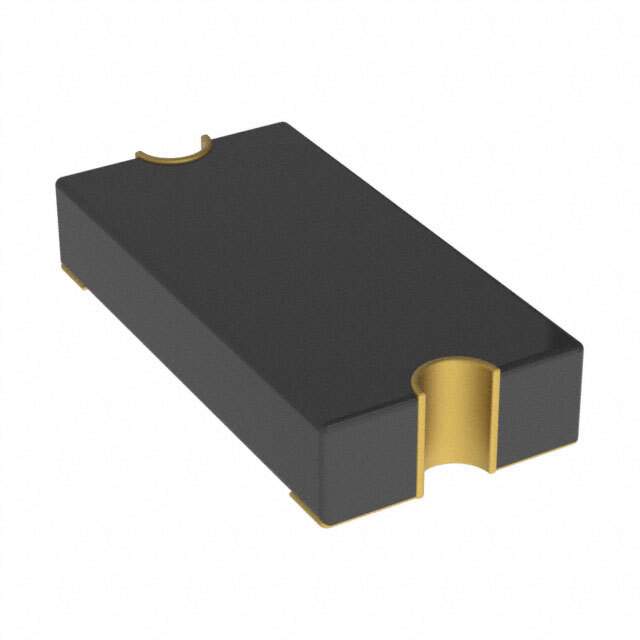

MF-NSMF075-2 Real Image
Same model may have multiple batches, images only for reference.

MF-NSMF075-2

Part No MF-NSMF075-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE .75A 6V 1206
Datasheet
MF-NSMF075-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 6V
Current - Max 100A
Current - Hold (Ih) (Max) 750mA
Current - Trip (It) 1.5A
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 100 mOhm
Resistance - Post Trip (R1) (Max) 400 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.028" (0.70mm)
Approvals cURus, TUV
Win Source Part Number 023201-MF-NSMF075-2
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Communications & Networking
Ultra Librarian 3D Model Ultra Librarian MF-NSMF075-2 CAD Model

Description

The MF-NSMF075-2 is an electronic component manufactured by Bourns Inc.

  • Component Type: polymeric
  • Approvals: cURus and TUV
  • Suitable for: use in various electronic devices and applications
  • Performance: reliable
  • Current Rating: 100A
  • Voltage Rating: 6V
  • Supply and demand status: sufficient
  • Popularity: medium
  • Widely used in: communications and networking applications
