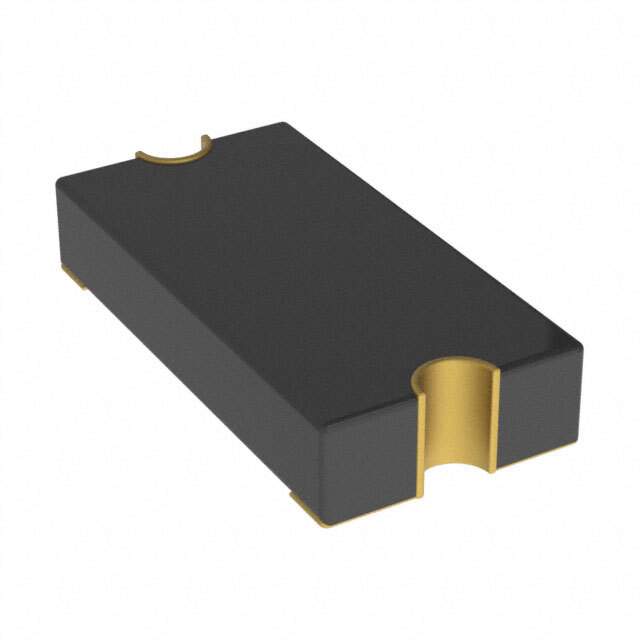

MF-NSMF035X-2 Real Image
Same model may have multiple batches, images only for reference.

MF-NSMF035X-2

Part No MF-NSMF035X-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE 20A 16V
Datasheet
MF-NSMF035X-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 16V
Current - Max 20A
Current - Hold (Ih) (Max) 350mA
Current - Trip (It) 750mA
Time to Trip 140ms
Resistance - Initial (Ri) (Min) 300 mOhm
Resistance - Post Trip (R1) (Max) 1.4 Ohm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus
Win Source Part Number 023199-MF-NSMF035X-2
Ultra Librarian 3D Model Ultra Librarian MF-NSMF035X-2 CAD Model

Description

The Bourns Inc. electronic component is a polymeric type with AEC-Q200 approvals and a current rating of 20A.

  • Win Source Part Number: 023199-MF-NSMF035X-2
  • Response Time: fast blow
  • Voltage Rating: 16V
  • Thickness: 0.033" (0.85mm)
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Suitable for: use in circuit protection applications
