Same model may have multiple batches, images only for reference.

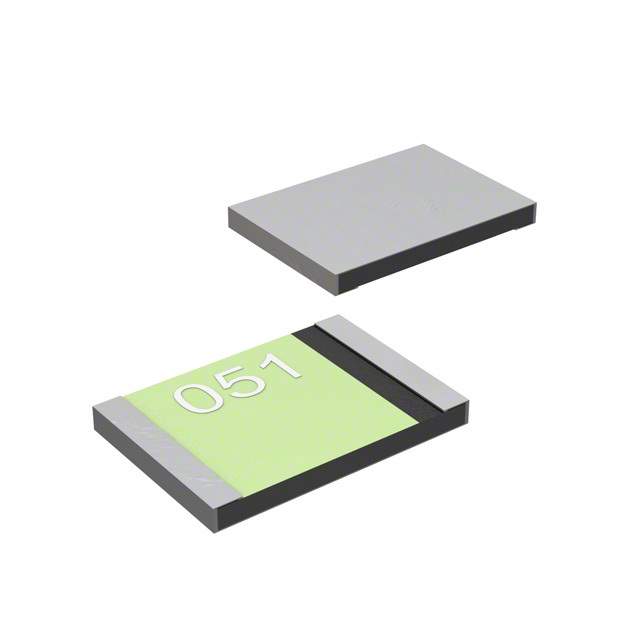

MF-MSMD110-2 Real Image
Same model may have multiple batches, images only for reference.

MF-MSMD110-2

Part No MF-MSMD110-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE 1.10A HOLD SMD
Datasheet
MF-MSMD110-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 6V
Current - Max 100A
Current - Hold (Ih) (Max) 1.1A
Current - Trip (It) 2.2A
Time to Trip 300ms
Resistance - Initial (Ri) (Min) 40 mOhm
Resistance - Post Trip (R1) (Max) 210 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.179" L x 0.020" W (4.55mm x 0.50mm)
Thickness (Max) 0.134" (3.41mm)
Approvals CSA, TUV, UR
Win Source Part Number 104114-MF-MSMD110-2
Ultra Librarian 3D Model Ultra Librarian MF-MSMD110-2 CAD Model

Description

The Bourns Inc. MF-MSMD110-2 is a high-quality polymeric-type circuit protection component that is perfect for use in various electronic devices.

  • Popularity Rating: low
  • Status: obsolete (EOL)
  • Manufacturer: Bourns Inc.
  • Approvals: CSA, TUV, and UR
  • Mounting: SMD (SMT)
  • Voltage-Max: 6V
  • Current-Max: 100A
  • Current-Hold (Ih) (Max): 1.1A
  • Current-Trip (It): 2.2A
  • Time to Trip: 300ms
