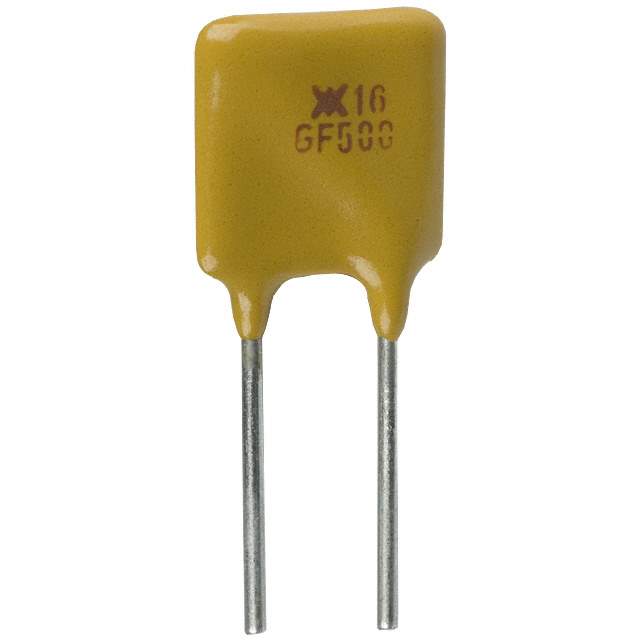

RF3236-000 Real Image
Same model may have multiple batches, images only for reference.

RF3236-000

Part No RF3236-000
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description Ptc Reset Fuse 16V 5A Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Radial
Height - Seated (Max) 14.3002 mm
Hold Current 5 A
Lead Pitch 5.0546 mm
Length 9.906 mm
Max Current Rating 100 A
Mount Through Hole
RoHS Compliant
Time to Trip 2 s
Trip Current 8.5 A
Width 2.4892 mm
Win Source Part Number 1145388-RF3236-000
Categories PTC Resettable Fuses
Manufacturer Littelfuse Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF3236-000 CAD Model

Description

The RF3236-000 is a PTC resettable fuse electronic component manufactured by Littelfuse Inc.

  • Reliable and efficient: Yes
  • High performance: Yes
  • Durable: Yes
