Same model may have multiple batches, images only for reference.

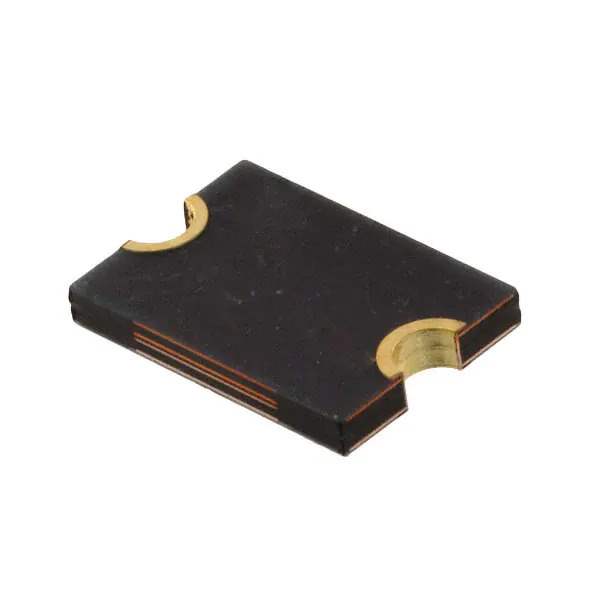

MF-LSMF260X-2 Real Image
Same model may have multiple batches, images only for reference.

MF-LSMF260X-2

Part No MF-LSMF260X-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 24V 2.6A 2920 / Polymeric PTC Resettable Fuse 24V 2.6 A Ih Surface Mount 2920 (7351 Metric), Concave
Datasheet
MF-LSMF260X-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Bourns Inc.
Series Multifuse®, MF-LSMF
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 24V
Current - Hold (Ih) (Max) 2.6 A
Current - Trip (It) 5.2 A
Current - Max 20 A
Time to Trip 5 s
Resistance - Initial (Ri) (Min) 20 mOhms
Resistance - Post Trip (R1) (Max) 75 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2920 (7351 Metric), Concave
Size / Dimension 0.289" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.063" (1.60mm)
Approval Agency cURus, TUV
Base Product Number MF-LSMF
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 852079-MF-LSMF260X-2
Ultra Librarian 3D Model Ultra Librarian MF-LSMF260X-2 CAD Model

Description

The 852079-MF-LSMF260X-2 is a PTC resettable fuse from the Multifuse® MF-LSMF series.

  • Series: Multifuse® MF-LSMF
  • Type: Polymeric
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.289" L x 0.202" W (7.36mm x 5.12mm)
  • Voltage - Max: 24V
  • Current - Max: 20A
  • Current - Hold (Ih): 2.6A
  • Current - Trip (It): 5.2A
  • Time to Trip: 5 s
  • Mounting Type: Surface Mount
  • Package / Case: 2920 (7351 Metric), Concave
  • Operating Temperature: -40°C ~ 85°C
  • Resistance - Initial (Ri) (Min): 20 mOhms
  • Resistance - Post Trip (R1) (Typ): 75 mOhms
  • Approvals: cURus, TUV
