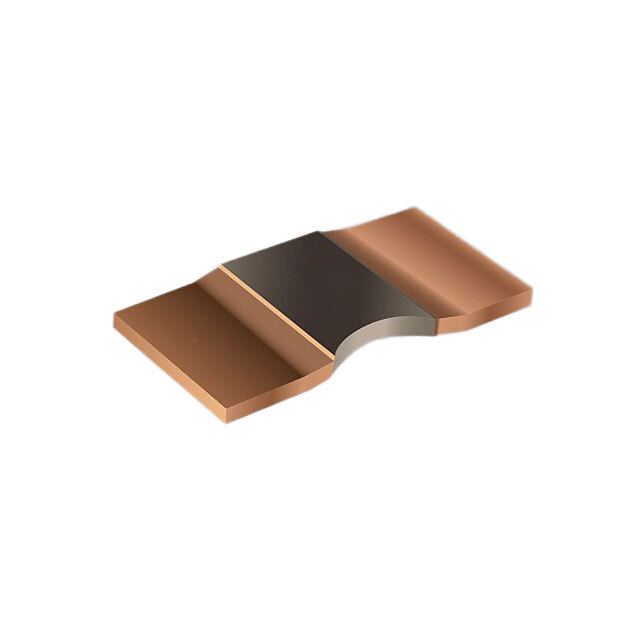

Same model may have multiple batches, images only for reference.
CSS2H-5930K-3L00FE Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CSS2H-5930K-3L00FE

Part No CSS2H-5930K-3L00FE
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES 0.003 OHM 1% 6W 5930
Datasheet
CSS2H-5930K-3L00FE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category ResistorsChip Resistor - Surface Mount
Mfr Bourns Inc.
Series CSS2H-5930
Packaging Tape & Reel (TR)
Part Status Active
Resistance 3 mOhms
Tolerance ±1%
Power (Watts) 6W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±50ppm/°C
Operating Temperature -55°C ~ 170°C
Package / Case Nonstandard
Supplier Device Package 5930
Ratings AEC-Q200
Size / Dimension 0.591" L x 0.305" W (15.00mm x 7.75mm)
Height - Seated (Max) 0.040" (1.02mm)
Number of Terminations 2
Base Product Number CSS2H
Ultra Librarian 3D Model Ultra Librarian CSS2H-5930K-3L00FE CAD Model
