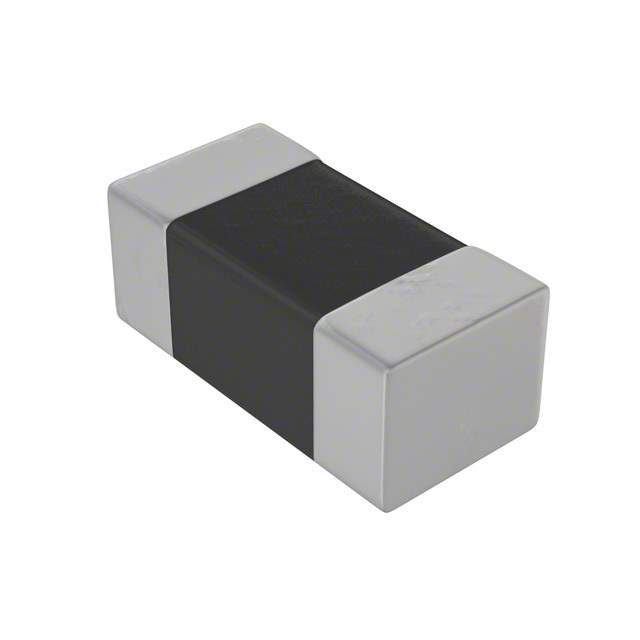

CS321613-5R6K Real Image
Same model may have multiple batches, images only for reference.

CS321613-5R6K

Part No CS321613-5R6K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 5.6UH 25MA 600 MOHM / Ferrite Multi-Layer Chip Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Part Status Obsolete (End Of Life)
Type Multilayer
Material - Core Ferrite
Inductance 5.6μH
Tolerance ±10%
Current Rating (Amps) 25mA
Shielding Shielded
DC Resistance (DCR) 600mOhm Max
Q at Freq 65 at 4MHz
Frequency - Self Resonant 32MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 4MHz
Mounting Style SMD
Manufacturer Package 1206 (3216 Metric)
Supplier Device Package 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W
Height - Seated (Maximum) 0.059" (1.50mm)
Part Number Series CS321613
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809668-CS321613-5R6K
Ultra Librarian 3D Model Ultra Librarian CS321613-5R6K CAD Model

Description

The Bourns Inc. CS321613-5R6K is an obsolete (end of life) multilayer inductor with a shielded type and a ferrite core material.

  • Inductance: 5.6μH
  • Tolerance: ±10%
  • Mounting Type: SMD
  • Supplier Device Package: 1206 (3216 Metric)
  • Maximum DC Resistance (DCR): 600mOhm
  • Frequency of Self-Resonant: 32MHz
  • Manufacturer Package Quantity: 3,000
