Same model may have multiple batches, images only for reference.

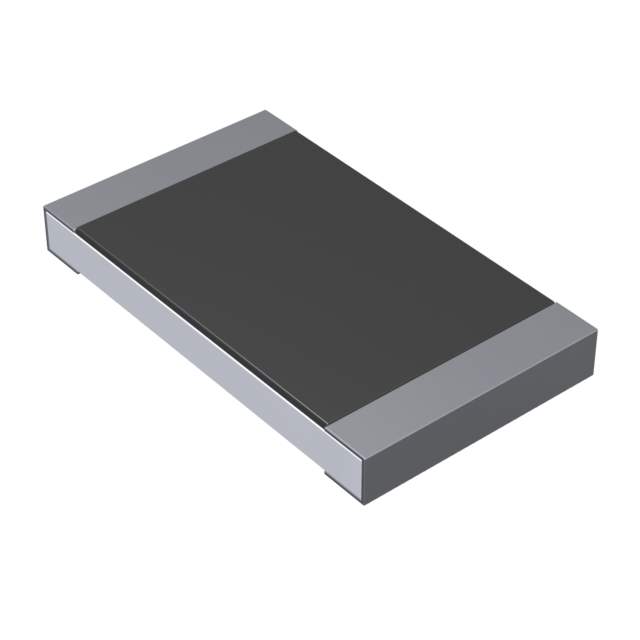

CR2512-JW-270ELF Real Image
Same model may have multiple batches, images only for reference.

CR2512-JW-270ELF

Part No CR2512-JW-270ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description Res Thick Film 2512 27 Ohm 5% 1W ±200ppm/°C Molded SMD Embossed Plastic T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package 2512
Composition Thick Film
Height 700 µm
Length 6.2992 mm
Max Operating Temperature 155 °C
Max Power Dissipation 1 W
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Terminations 2
Packaging Tape & Reel (TR)
Power Rating 1 W
Resistance 27 Ω
RoHS Compliant
Temperature Coefficient 200 ppm/°C
Tolerance 5 %
Voltage Rating 200 V
Width 3.0988 mm
Win Source Part Number 1123464-CR2512-JW-270ELF
Categories Chip Resistor - Surface Mount
Manufacturer Bourns Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CR2512-JW-270ELF CAD Model

Description

The Bourns Inc. CR2512-JW-270ELF is a chip resistor - surface mount in the category of resistors.

  • Manufacturer: Bourns Inc.
  • Packaging: Tape and reel (TR)
  • Voltage Rating: 200 V
  • Length: 6.2992 mm
  • Width: 3.0988 mm
  • Height: 700 µm
  • Number of Terminations: 2
  • Resistance: 27 Ω
  • Tolerance: 5 %
  • Temperature Coefficient: 200 ppm/°C
  • Power Rating: 1 W
  • Case/Package: 2512
  • Operating Temperature Range: -55 °C to 155 °C
  • RoHS Compliant: Yes
