Same model may have multiple batches, images only for reference.

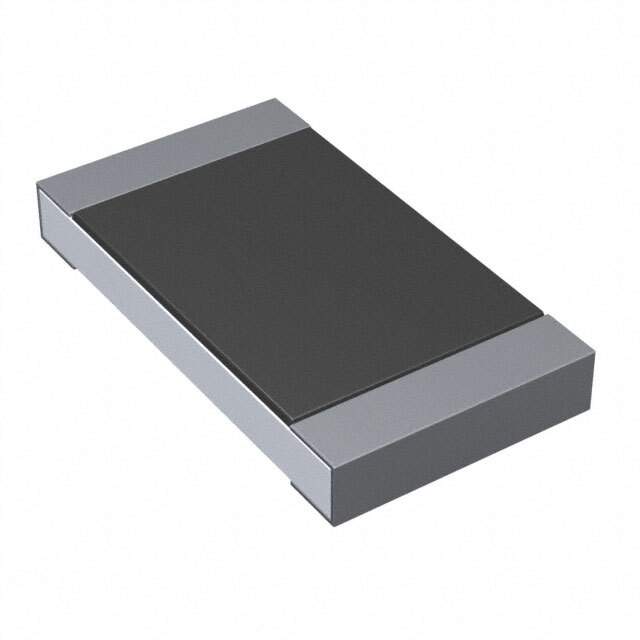

CR2010-JW-561ELF Real Image
Same model may have multiple batches, images only for reference.

CR2010-JW-561ELF

Part No CR2010-JW-561ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 560 OHM 5% 1/2W 2010 / 560 Ohms ±5% 0.5W, 1/2W Chip Resistor 2010 (5025 Metric) Thick Film
Datasheet
CR2010-JW-561ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series CR2010
Package Tape & Reel
Resistance 560 Ohms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2010 (5025 Metric)
Supplier Device Package 2010
Dimension 0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number CR2010
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 118-CR2010-JW-561ELFCT,118-CR2010-JW-561ELFDKR,118-CR2010-JW-561ELFTR,CR2010-JW-561ELF-ND
Standard Package 4,000
Win Source Part Number 967950-CR2010-JW-561ELF
Ultra Librarian 3D Model Ultra Librarian CR2010-JW-561ELF CAD Model

Description

The Bourns Inc. CR2010-JW-561ELF is a chip resistor - surface mount with a resistance of 560 ohms and a tolerance of ±5%.

  • Resistance: 560 ohms
  • Tolerance: ±5%
  • Power (Watts): 0.5W, 1/2W
  • Temperature Coefficient: ±200ppm/°C
  • Device Package: 2010 (5025 metric)
  • Number of Terminations: 2
  • Height - Seated (max): 0.028"
  • Operating Temperature Range: -55°C to 155°C
