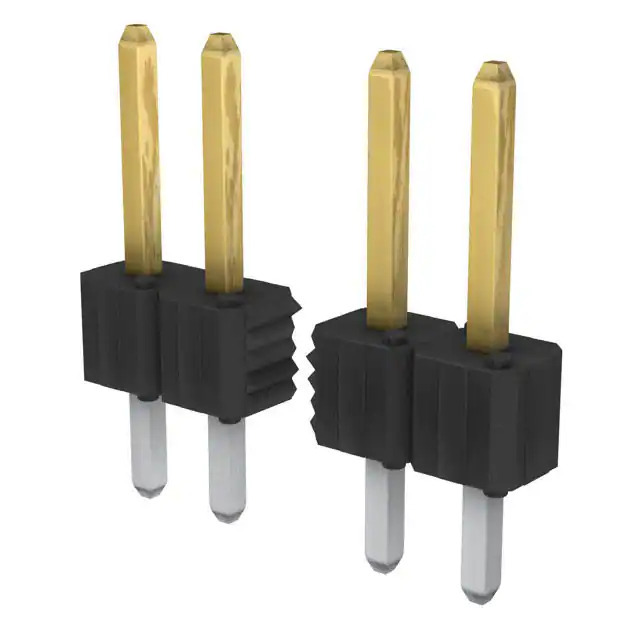

Same model may have multiple batches, images only for reference.

68001-106HLF

Name: 68001-106HLF
Brand: Amphenol
SKU: 1366024
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	68001-106HLF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK® II
Package	Bag
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.450" (11.43mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	-
Contact Material	Phosphor Bronze
Insulation Material	-
Features	-
Temperature Range - Operating	-65°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	68001
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1366024-68001-106HLF
Ultra Librarian 3D Model	Ultra Librarian 68001-106HLF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) BERGSTIK II Header is a high-quality connector for board-to-board applications.

Pin Type: Male
Current Rating: 3A per contact
Termination: Solder
Pitch: 0.100" (2.54mm)
Positions: 6
Rows: 1
Shrouded: Unshrouded
Contact Material: Phosphor Bronze with Gold Finish
Insulation Material: Thermoplastic
Flammability Rating: UL94 V-0
Insulation Color: Black
Voltage Rating: 125VAC
Series: 68001
Packaging: Bag
Temperature Range: -65°C to 125°C
