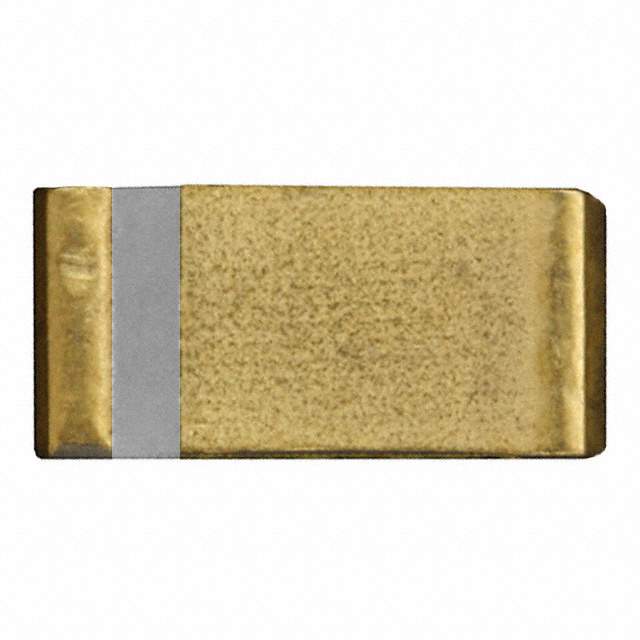

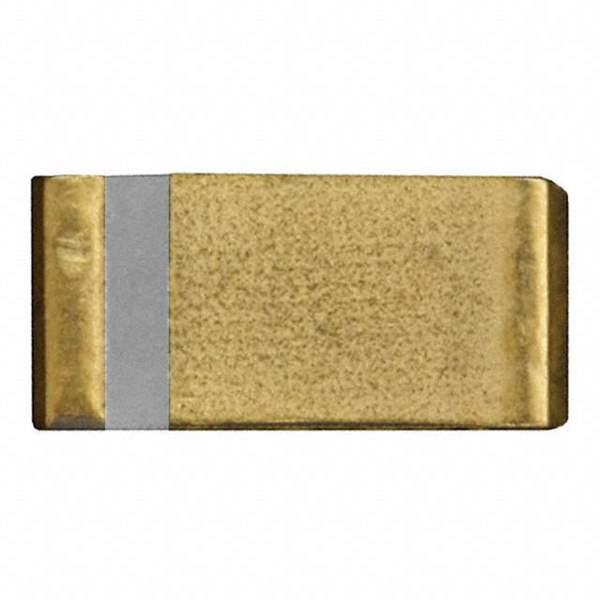

CHF2010CNP500LXE

Part No CHF2010CNP500LXE
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 50 OHM 5% 10W 2010 / 50 Ohms ±5% 10W Chip Resistor 2010 (5025 Metric) RF, High Frequency Thick Film
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series CHF - RF Power
Package Tape & Reel (TR)
Product Status Obsolete
Resistance 50 Ohms
Tolerance ±5%
Power (Watts) 10W
Composition Thick Film
Features RF, High Frequency
Temperature Range - Operating -55°C ~ 150°C
Package / Case 2010 (5025 Metric)
Supplier Device Package 2010
Dimension 0.209" L x 0.106" W (5.30mm x 2.70mm)
Height - Seated (Max) 0.039" (0.99mm)
Number of Terminations 2
Base Product Number CHF2010
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Standard Package 2,000
Win Source Part Number 1175901-CHF2010CNP500LXE
Ultra Librarian 3D Model Ultra Librarian CHF2010CNP500LXE CAD Model

Description

This component is a chip resistor - surface mount and belongs to the Resistors category from Bourns Inc.

  • Power: 10W
  • Resistance: 50 Ohms
  • Composition: Thick film
  • Tolerance: ±5%
  • Package/Case: 2010 (5025 Metric)
  • Supplier Device Package: 2010
  • Temperature Range: -55°C ~ 150°C
