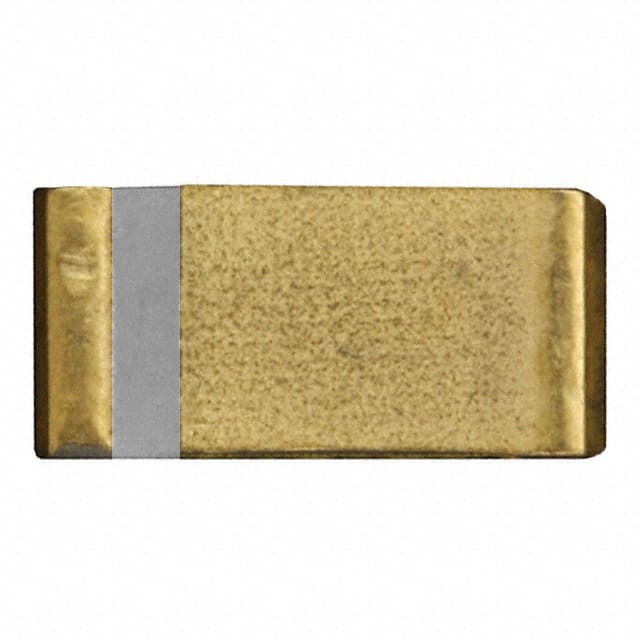

Same model may have multiple batches, images only for reference.
CHF2010CNP500LX
Same model may have multiple batches, images only for reference.

CHF2010CNP500LX

Part No CHF2010CNP500LX
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 50 OHM 5% 10W 2010
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series CHF - RF Power
Package Bulk
Product Status Obsolete
Resistance 50 Ohms
Tolerance ±5%
Power (Watts) 10W
Composition Thick Film
Features RF, High Frequency
Temperature Range - Operating -55°C ~ 150°C
Package / Case 2010 (5025 Metric)
Supplier Device Package 2010
Size / Dimension 0.209" L x 0.106" W (5.30mm x 2.70mm)
Height - Seated (Max) 0.039" (0.99mm)
Number of Terminations 2
Base Product Number CHF2010
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 847755-CHF2010CNP500LX
Ultra Librarian 3D Model Ultra Librarian CHF2010CNP500LX CAD Model

Description

The CHF2010CNP500LX chip resistor from Bourns Inc. is a high-quality surface mount resistor designed for RF and high-frequency applications.

  • Resistance: 50 Ohms
  • Power Rating: 10W
  • Composition: Thick Film
  • Number of Terminations: 2
  • Package / Case: 2010 (5025 Metric)
  • Height - Seated (Max): 0.039"
  • Series: CHF - RF Power
  • Standard Package Quantity: 100 pcs
  • Tolerance: ±5%
  • California Prop 65: Compliant
  • Product Status: Active
  • REACH Status: Unaffected
