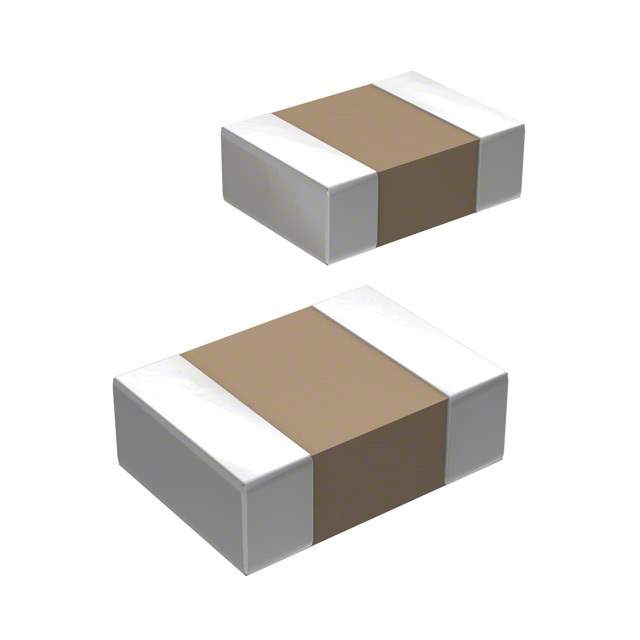

CF453215-5R6K Real Image
Same model may have multiple batches, images only for reference.

CF453215-5R6K

Part No CF453215-5R6K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 5.6UH 300MA 1.1OHM SMD / 5.6 µH Shielded Multilayer Inductor 300 mA 1.1Ohm Max 1812 (4532 Metric)
Datasheet
CF453215-5R6K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series CF453215
Package Tape & Reel (TR)
Product Status Obsolete
Type Multilayer
Material - Core Ferrite
Inductance 5.6 µH
Tolerance ±10%
Current Rating (Amps) 300 mA
Shielding Shielded
DC Resistance (DCR) 1.1Ohm Max
Q @ Freq 50 @ 7.96MHz
Frequency - Self Resonant 33MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 7.96 MHz
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.067" (1.70mm)
Base Product Number CF453215
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 1,000
Win Source Part Number 1051427-CF453215-5R6K
Ultra Librarian 3D Model Ultra Librarian CF453215-5R6K CAD Model

Description

The Bourns Inc. CF453215 is a fixed inductor with an inductance of 5.6 µH. Bourns Inc. is the manufacturer.

  • Inductance: 5.6 µH
  • Tolerance: ±10%
  • Temperature Coefficient: ±10%
  • Package: Tape & reel
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Height - Seated (Max): 0.067" (1.70mm)
  • Shielding: Shielded
  • Material - Core: Ferrite
  • Q @ Freq: 50 @ 7.96MHz
  • Frequency - Self-Resonant: 33MHz
  • DC Resistance (DCR): 1.1Ohm Max
  • Supplier Device Package: 1812
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.50.8000
  • Base Product Number: CF453215
