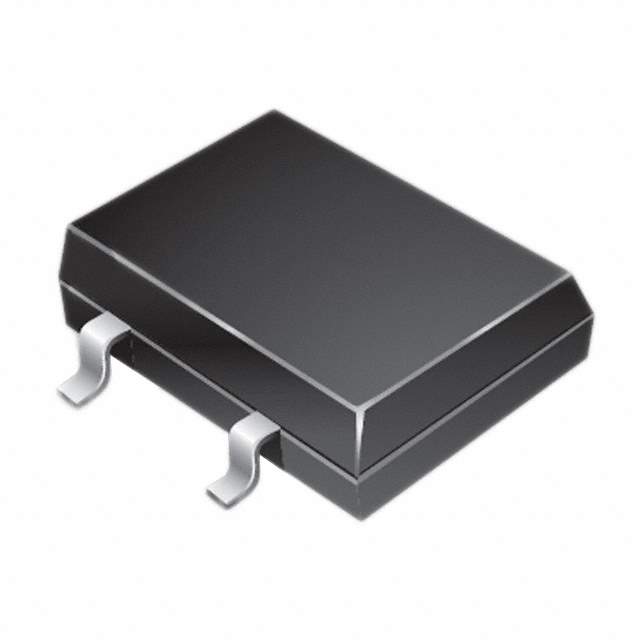

CDNBS04-B08800 Real Image
Same model may have multiple batches, images only for reference.

CDNBS04-B08800

Part No CDNBS04-B08800
Manufacturer Bourns Inc.
Catalog Bridge Rectifiers
Description DIODE BRIDGE RECTIFIER
Datasheet
CDNBS04-B08800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800V
Current - Average Rectified (Io) 800mA
Voltage - Forward (Vf) (Max) @ If 1.15V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 800V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package NBS04
Win Source Part Number 1028838-CDNBS04-B08800
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management, Consumer Electronics, Industrial, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian CDNBS04-B08800 CAD Model

Description

The CDNBS04-B08800 is a single-phase diode that is used in power management, consumer electronics, industrial, communications, and networking applications by Bourns Inc.

  • Maximum Forward Voltage: 1.15V @ 400mA
  • Maximum Peak Reverse Voltage: 800V
  • Average Rectified Current: 800mA
  • Reverse Leakage Current: 5μA @ 800V
  • Operating Temperature: -55°C to 150°C (TJ)
  • Package Type: NBS04
  • Mounting: SMD (SMT)
