Same model may have multiple batches, images only for reference.

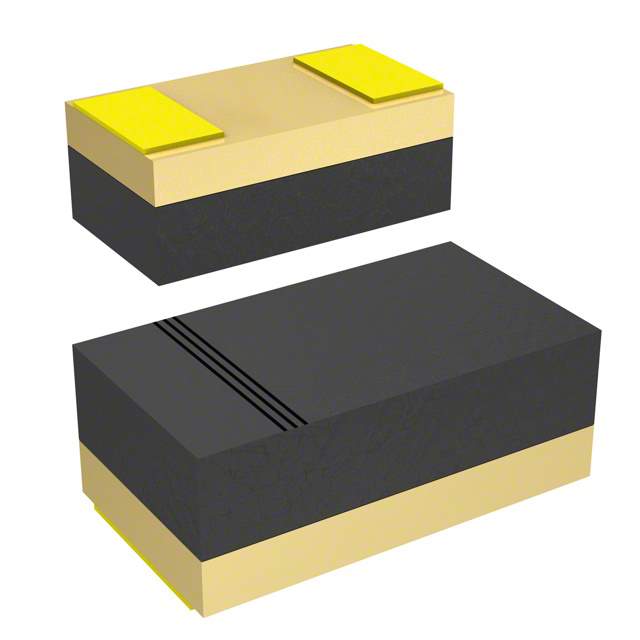

CD0603-B0230 Real Image
Same model may have multiple batches, images only for reference.

CD0603-B0230

Part No CD0603-B0230
Manufacturer Bourns Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA 0603
Datasheet
CD0603-B0230 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Not For New Designs
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 500mV @ 200mA
Current - Reverse Leakage @ Vr 30μA @ 30V
Capacitance @ Vr, F 12pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package 0603
Operating Temperature - Junction -40°C to 125°C
Win Source Part Number 1028089-CD0603-B0230
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian CD0603-B0230 CAD Model

Description

Bourns Inc. presents the CD0603-B0230 Schottky diode.

  • Maximum DC Reverse Voltage: 30V
  • Average Rectified Current: 200mA
  • Forward Voltage: 500mV @ 200mA
  • Reverse Leakage Current: 30μA @ 30V
  • Capacitance: 12pF @ 10V, 1MHz
  • Operating Temperature Range: -40°C to 125°C
  • Status: Not for new designs
