Same model may have multiple batches, images only for reference.

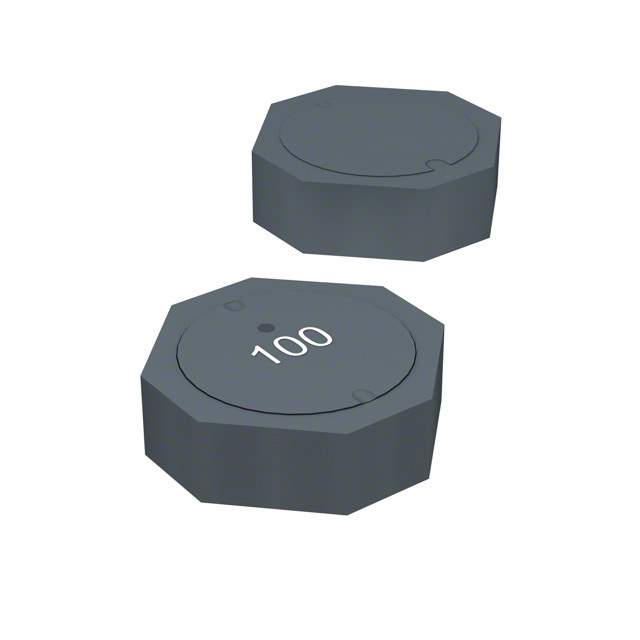

SRU5016-150Y Real Image
Same model may have multiple batches, images only for reference.

SRU5016-150Y

Part No SRU5016-150Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU5016-150Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU5016
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±30%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 720mA
Shielding Shielded
DC Resistance (DCR) 130mOhm
Q @ Freq 15 @ 2.52MHz
Frequency - Self Resonant 32MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max) 0.071" (1.80mm)
Base Product Number SRU5016
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273053-SRU5016-150Y
Ultra Librarian 3D Model Ultra Librarian SRU5016-150Y CAD Model

Description

The Bourns Inc. SRU5016-150Y is a fixed inductor with a 15 µH inductance.

  • Tolerance: ±30%
  • Temperature Range: -40°C ~ 125°C
  • Current Rating: 800 mA
  • DC Resistance (DCR): 130mOhm
  • Mounting: SMD (SMT) technology
  • Package / Case: Nonstandard
  • Manufacturer: Bourns Inc.
  • Base Product Number: SRU5016
