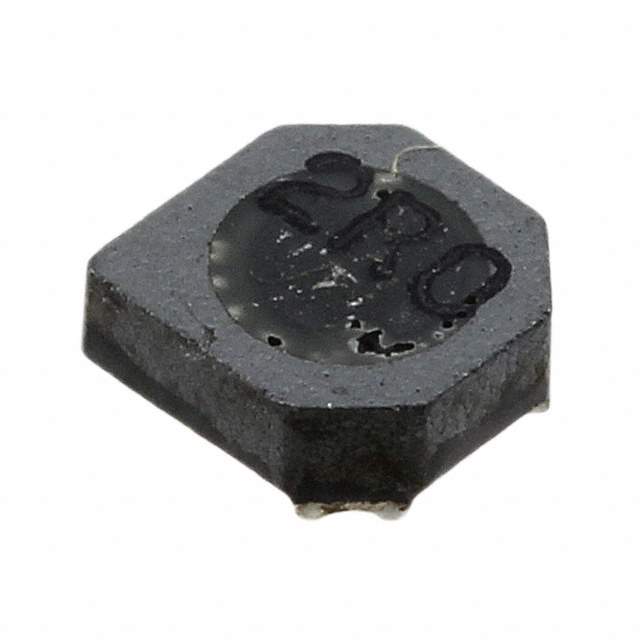

SRU3014-1R2Y Real Image
Same model may have multiple batches, images only for reference.

SRU3014-1R2Y

Part No SRU3014-1R2Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU3014-1R2Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU3014
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.2 µH
Tolerance ±30%
Current Rating (Amps) 1.85 A
Current - Saturation (Isat) 1.9A
Shielding Shielded
DC Resistance (DCR) 55mOhm Max
Q @ Freq 12 @ 7.96MHz
Frequency - Self Resonant 150MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.138" L x 0.130" W (3.50mm x 3.30mm)
Height - Seated (Max) 0.063" (1.60mm)
Base Product Number SRU3014
Standard Package 1,200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273078-SRU3014-1R2Y
Ultra Librarian 3D Model Ultra Librarian SRU3014-1R2Y CAD Model

Description

The SRU3014-1R2Y fixed inductor is a drum core, wirewound type inductor with a shielding feature manufactured by Bourns Inc.

  • Inductance: 1.2 µH
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Q @ Freq: 12 @ 7.96MHz
  • Operating Temperature Range: -40°C to 125°C
  • Package/Case: Nonstandard
  • Mounting: SMD (SMT)
  • DC Resistance (DCR): 55mOhm Max
  • Current Rating (Amps): 1.85 A
