Same model may have multiple batches, images only for reference.

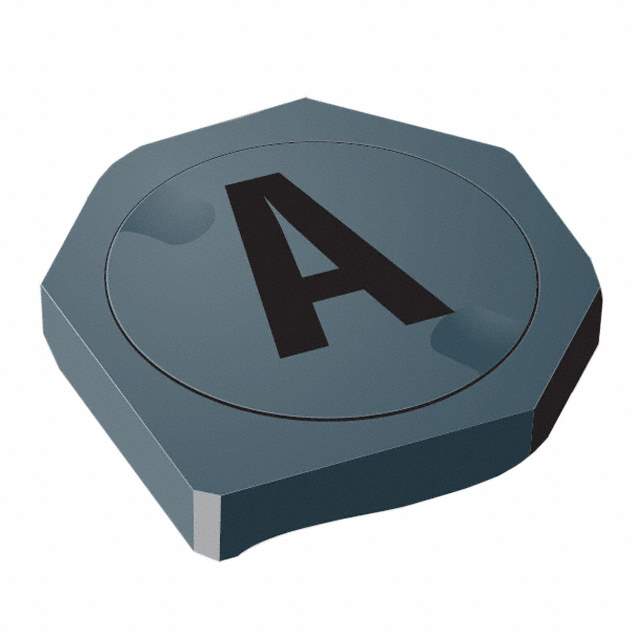

SRU3009-220Y Real Image
Same model may have multiple batches, images only for reference.

SRU3009-220Y

Part No SRU3009-220Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU3009-220Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU3009
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±30%
Current Rating (Amps) 220 mA
Current - Saturation (Isat) 250mA
Shielding Shielded
DC Resistance (DCR) 1.45Ohm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.138" L x 0.130" W (3.50mm x 3.30mm)
Height - Seated (Max) 0.041" (1.05mm)
Base Product Number SRU3009
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273085-SRU3009-220Y
Ultra Librarian 3D Model Ultra Librarian SRU3009-220Y CAD Model

Description

The SRU3009-220Y is an electronic component manufactured by Bourns Inc.

  • Series: SRU3009 series
  • Type: Fixed inductor
  • Core Type: Drum core, wirewound
  • Shielded: Yes
  • Inductance: 22 µH
  • Height seated (max): 0.041" (1.05mm)
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Q @ Freq: 20 @ 2.52MHz
  • Frequency self-resonant: 40MHz
  • DC resistance (DCR): 1.45Ohm Max
  • Temperature range: -40°C ~ 125°C
  • Current rating (Amps): 220 mA
