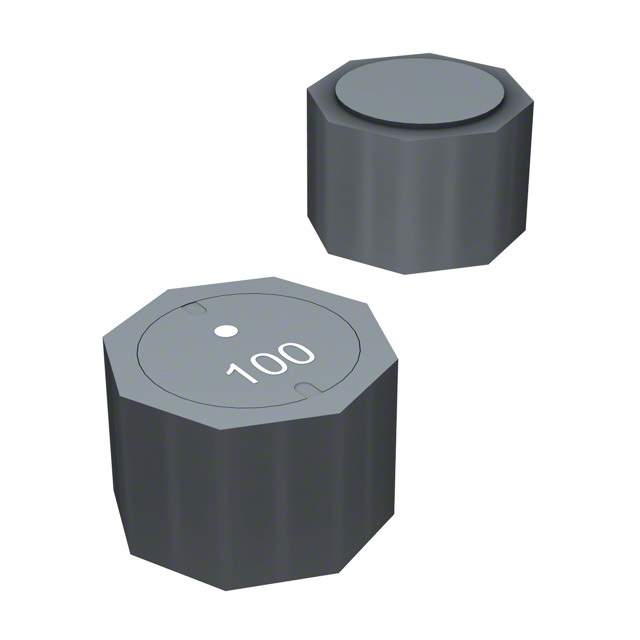

Same model may have multiple batches, images only for reference.

SRU1063-100Y

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRU1063-100Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRU1063-100Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRU1063
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	10 µH
Tolerance	±30%
Current Rating (Amps)	3.8 A
Current - Saturation (Isat)	4A
Shielding	Shielded
DC Resistance (DCR)	38mOhm Max
Q @ Freq	14 @ 2.52MHz
Frequency - Self Resonant	18MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.268" (6.80mm)
Base Product Number	SRU1063
Other Names	118-SRU1063-100YDKR,118-SRU1063-100YCT,118-SRU1063-100YTR,SRU1063-100Y
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273121-SRU1063-100Y
Ultra Librarian 3D Model	Ultra Librarian SRU1063-100Y CAD Model

Alternative Products

Description

The SRU1063-100Y is a drum core, wirewound inductor from Bourns Inc.

Shielded: Yes
Inductance: 10 µH
Tolerance: ±30%
Core Material: Ferrite
Q @ Freq: 14 @ 2.52MHz
Frequency Self-Resonant: 18MHz
DC Resistance (DCR): 38mOhm Max
Package/Case: Non-standard
Height - Seated (Max): 0.268" (6.80mm)
Current Rating: 3.8 A
Current - Saturation (Isat): 4A
Temperature Range: -40°C ~ 125°C
Application: Ideal for use in applications such as power supplies, DC-DC converters, and filters
