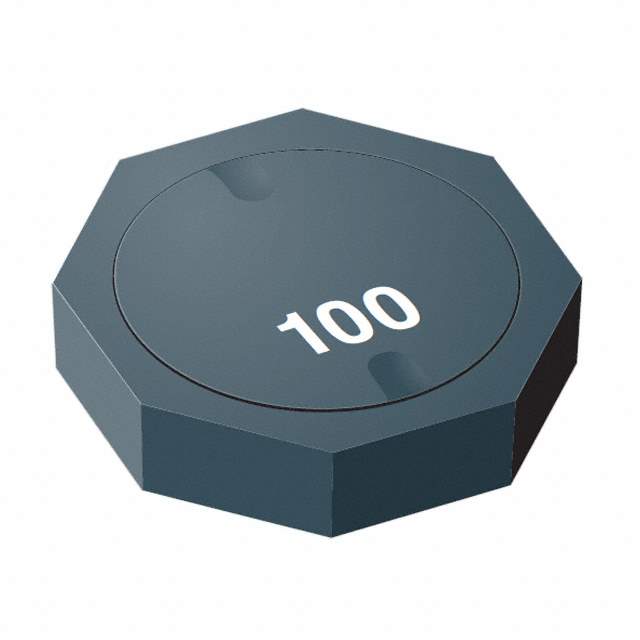

Same model may have multiple batches, images only for reference.

SRU1028A-3R3Y

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRU1028A-3R3Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRU1028A-3R3Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRU1028A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	3.3 µH
Tolerance	±30%
Current Rating (Amps)	4.6 A
Current - Saturation (Isat)	4.3A
Shielding	Shielded
DC Resistance (DCR)	20mOhm Max
Q @ Freq	14 @ 7.96MHz
Frequency - Self Resonant	55MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.122" (3.10mm)
Base Product Number	SRU1028A
Other Names	SRU1028A-3R3YDKR,SRU1028A-3R3YTR,SRU1028A-3R3YCT,SRU1028A-3R3Y
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273159-SRU1028A-3R3Y
Ultra Librarian 3D Model	Ultra Librarian SRU1028A-3R3Y CAD Model

Alternative Products

Description

The Bourns Inc. SRU1028A drum core, wirewound inductor is a fixed inductor that has an inductance of 3.3µH and a tolerance of ±30%.

Inductance: 3.3µH
Tolerance: ±30%
Current Rating: 4.6A
DC Resistance: 20mOhm max
Package: Nonstandard
Shielded: Yes
Height: 3.10mm when seated
Dimension: 10.00mm x 10.00mm
HTSUS: 8504.50.4000
ECCN: EAR99
