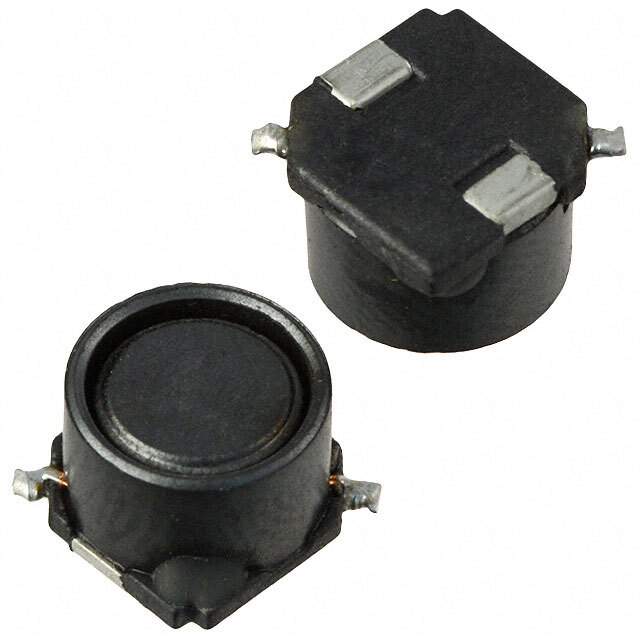

SRR7045-6R3M

Part No SRR7045-6R3M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR7045
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.3 µH
Tolerance ±20%
Current Rating (Amps) 2.33 A
Current - Saturation (Isat) 1.85A
Shielding Shielded
DC Resistance (DCR) 38mOhm Max
Q @ Freq 10 @ 7.96MHz
Frequency - Self Resonant 30MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR7045
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273176-SRR7045-6R3M
Ultra Librarian 3D Model Ultra Librarian SRR7045-6R3M CAD Model

Description

The Bourns Inc. SRR7045 series fixed inductor is designed for use in a variety of electronic devices.

  • Core: Shielded drum core
  • Type: Wirewound
  • Inductance: 6.3μH
  • Tolerance: ±20%
  • Material: Ferrite
  • Height: 0.189" (4.80mm)
  • Dimension: 0.276" L x 0.276" W (7.00mm x 7.00mm)
  • Temperature Range: -40°C to 125°C
  • Current Rating: 2.33 A
  • DC Resistance: 38mOhm Max
  • Product: Nonstandard
