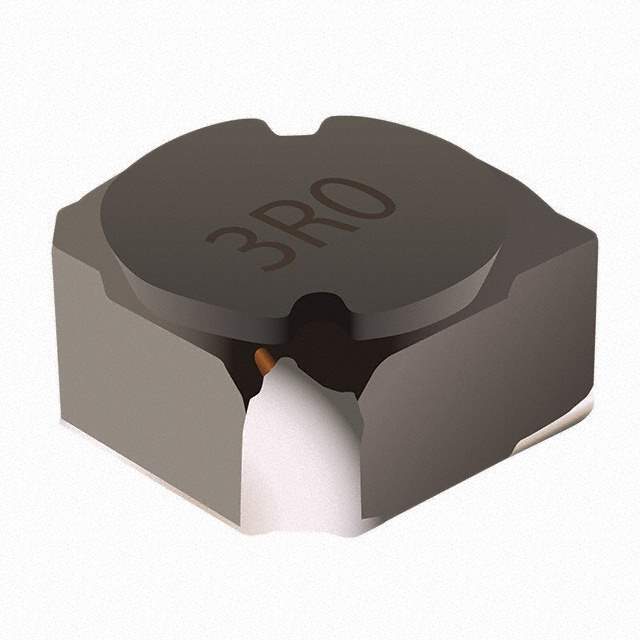

SRR6040A-820M Real Image
Same model may have multiple batches, images only for reference.

SRR6040A-820M

Part No SRR6040A-820M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR6040A-820M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR6040A
Package Tape & Reel
Material - Core Ferrite
Inductance 82 µH
Tolerance ±20%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 630mA
Shielding Shielded
DC Resistance (DCR) 290mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting SMD (SMT)
Package / Case Nonstandard, Corner Terminals
Dimension 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) 0.157" (4.00mm)
Base Product Number SRR6040A
Other Names SRR6040A-820MCT,118-SRR6040A-820MTR,SRR6040A-820MTR,SRR6040A-820MTR,118-SRR6040A-820MDKR,118-SRR6040A-820MCT,SRR6040A-820MDKR,SRR6040A-820MDKR,SRR6040A-820MCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273210-SRR6040A-820M
Ultra Librarian 3D Model Ultra Librarian SRR6040A-820M CAD Model

Description

The SRR6040A series by Bourns Inc. is a fixed inductor designed for use in inductors, coils, and chokes.

  • Type: Shielded
  • Package: Tape and reel
  • Inductance: 82 µH
  • Height Seated (Max): 0.157" (4.00mm)
  • Tolerance: ±20%
  • Rated: AEC-Q200
  • Material Core: Ferrite
  • DC Resistance (DCR): 290mOhm Max
  • Mounted: SMD (SMT)
  • Current Rating: 700 mA
  • Package/Case: Nonstandard, corner terminals
  • Dimension: 0.264" L x 0.264" W (6.70mm x 6.70mm)
  • Operating Temperature Range: -40°C ~ 125°C
  • MSL Level: 1 (unlimited)
  • HTSUS: 8504.50.4000
