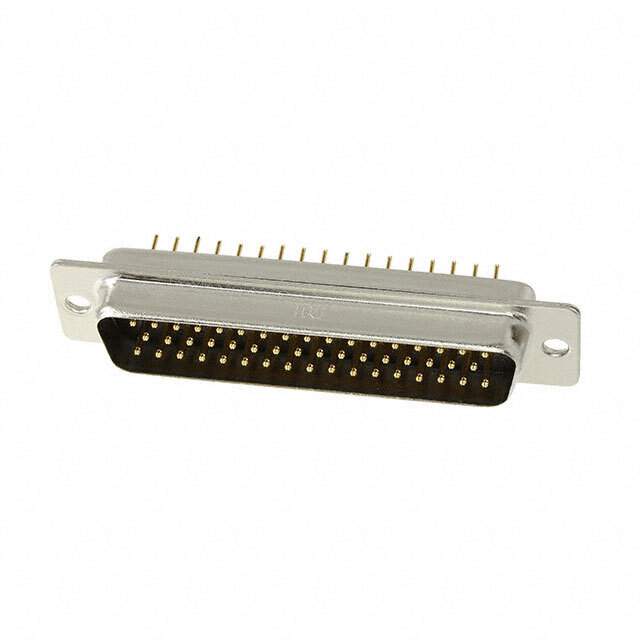

SDDB-50P(55) Real Image
Same model may have multiple batches, images only for reference.

SDDB-50P(55)

Part No SDDB-50P(55)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Hirose Electric Co Ltd
Series SD
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 50
Number of Rows 3
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 5 (DD, D)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Base Product Number SDDB
Other Names H122923,*SDDB-50P(55),211-0395-0-55,-SDDB-50P(55),*SDDB-50P(55)
Standard Package 48
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294120-SDDB-50P(55)
Ultra Librarian 3D Model Ultra Librarian SDDB-50P(55) CAD Model

Description

The SDDB-50P(55) is a D-Sub connector manufactured by Hirose Electric Co Ltd.

  • Win Source Part Number: 1294120
  • Category: Connectors, Interconnects
  • Positions: 50
  • Connector Type: Male plug for signal contacts
  • Contact Finish: Gold
  • Current Rating: 3A
  • MSL Level: 1
