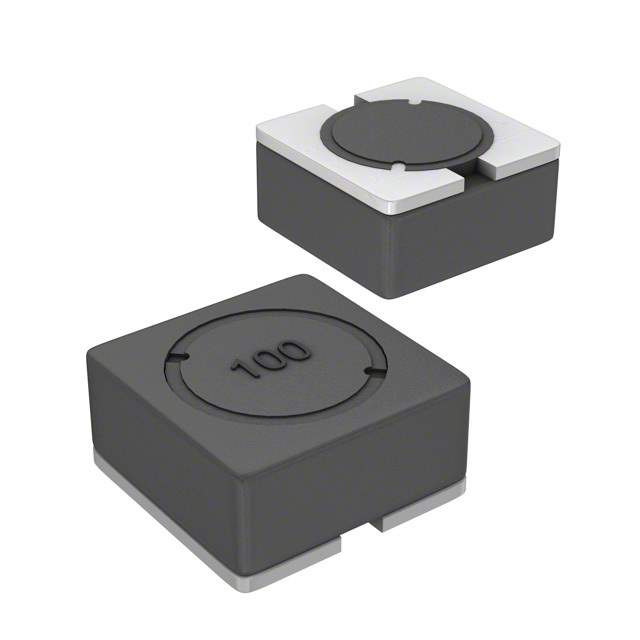

Same model may have multiple batches, images only for reference.

SRR5028-680Y

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR5028-680Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR5028-680Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR5028
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	68 µH
Tolerance	±30%
Current Rating (Amps)	620 mA
Current - Saturation (Isat)	560mA
Shielding	Shielded
DC Resistance (DCR)	350mOhm Max
Q @ Freq	8 @ 2.52MHz
Frequency - Self Resonant	11MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max)	0.118" (3.00mm)
Base Product Number	SRR5028
Other Names	-SRR5028-680YCT,-SRR5028-680Y,-SRR5028-680Y,SRR5028-680YCT,SRR5028-680YTR,SRR5028-680Y,SRR5028680Y,-SRR5028-680YTR
Standard Package	400
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273240-SRR5028-680Y
Ultra Librarian 3D Model	Ultra Librarian SRR5028-680Y CAD Model

Alternative Products

Description

The SRR5028 series inductor is a drum core, wirewound type that comes in a nonstandard package/case.

Shielding: Yes
Inductance: 68 µH
Tolerance: ±30%
Core Material: Ferrite
Q @ Freq: 8 @ 2.52MHz
Frequency: 11MHz
DC Resistance (DCR): 350mOhm Max
Current Rating: 620mA
Inductance Frequency-Test: 100kHz
Operating Temperature Range: -40°C to 125°C
Dimension: 0.228" L x 0.228" W (5.80mm x 5.80mm)
MSL Level: 1 (Unlimited)
Supplier Device Package: Not specified
