Same model may have multiple batches, images only for reference.

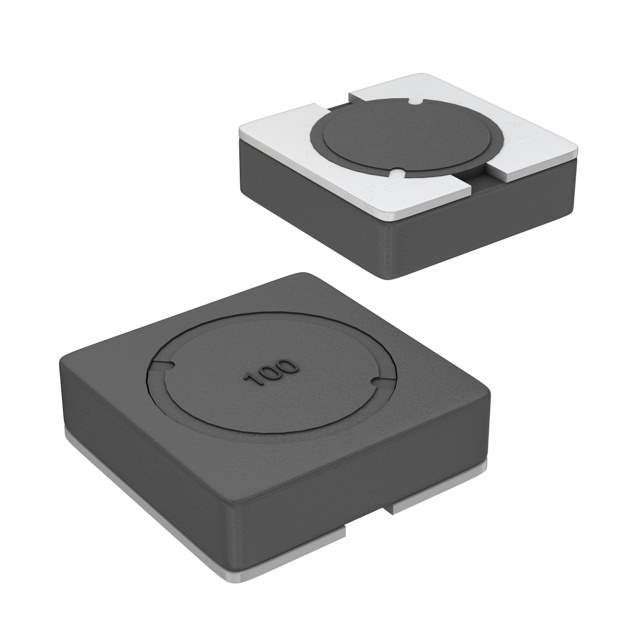

SRR5018-5R0Y Real Image
Same model may have multiple batches, images only for reference.

SRR5018-5R0Y

Part No SRR5018-5R0Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR5018-5R0Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR5018
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 5 µH
Tolerance ±30%
Current Rating (Amps) 1.65 A
Current - Saturation (Isat) 1.8A
Shielding Shielded
DC Resistance (DCR) 60mOhm Max
Q @ Freq 7.9 @ 7.96MHz
Frequency - Self Resonant 55MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRR5018
Other Names SRR5018-5R0Y,-SRR5018-5R0YCT,118-SRR5018-5R0YCT,-SRR5018-5R0Y,SRR5018-5R0YCT,-SRR5018-5R0Y,SRR50185R0Y,SRR5018-5R0YTR,SRR5018-5R0YCT,SRR5018-5R0YTR,118-SRR5018-5R0YDKR,118-SRR5018-5R0YTR,-SRR5018-5R0YTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273265-SRR5018-5R0Y
Ultra Librarian 3D Model Ultra Librarian SRR5018-5R0Y CAD Model

Description

The Bourns Inc. SRR5018-5R0Y is a drum core, wirewound inductor with a ferrite core.

  • Shielding Feature: Yes
  • Tolerance: ±30%
  • Inductance: 5 µH
  • Current Rating: 1.65 A
  • Height: 0.079" (2.00mm)
  • Package Size: Nonstandard
  • DC Resistance (DCR): 60mOhm Max
  • Q @ Freq: 7.9 @ 7.96MHz
  • Frequency of Self-Resonant: 55MHz
  • Inductance Frequency Test: 100 kHz
  • Temperature Range: -40°C ~ 125°C
  • Dimension: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Package: Tape and reel
  • Standard Package: 500
