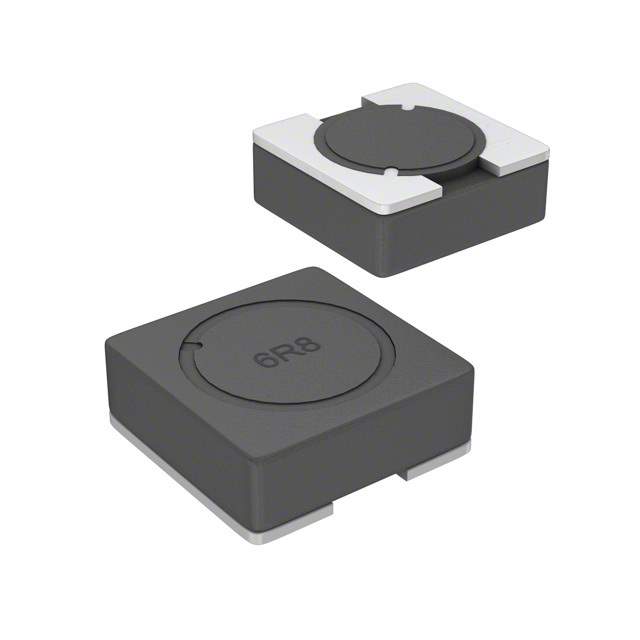

Same model may have multiple batches, images only for reference.

SRR4018-470Y

Name: SRR4018-470Y
Brand: Bourns Inc.
SKU: 1273325
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR4018-470Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR4018-470Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR4018
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	47 µH
Tolerance	±30%
Current Rating (Amps)	620 mA
Current - Saturation (Isat)	450mA
Shielding	Shielded
DC Resistance (DCR)	600mOhm Max
Q @ Freq	8 @ 2.52MHz
Frequency - Self Resonant	20MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	1919 (4848 Metric)
Dimension	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max)	0.079" (2.00mm)
Base Product Number	SRR4018
Other Names	-SRR4018-470YCT,SRR4018-470Y,SRR4018470Y,SRR4018-470YCT,-SRR4018-470Y,-SRR4018-470Y,-SRR4018-470YTR,SRR4018-470YTR
Standard Package	800
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273325-SRR4018-470Y
Ultra Librarian 3D Model	Ultra Librarian SRR4018-470Y CAD Model

Alternative Products

Description

The Bourns Inc. SRR4018-470Y is a fixed inductor that belongs to the inductors, coils, chokes category.

Core: Shielded drum core
Type: Wirewound
Package: Tape and reel and cut tape
Current: Maximum of 620mA
Ideal for: Use in various electronic devices that require a reliable inductor
