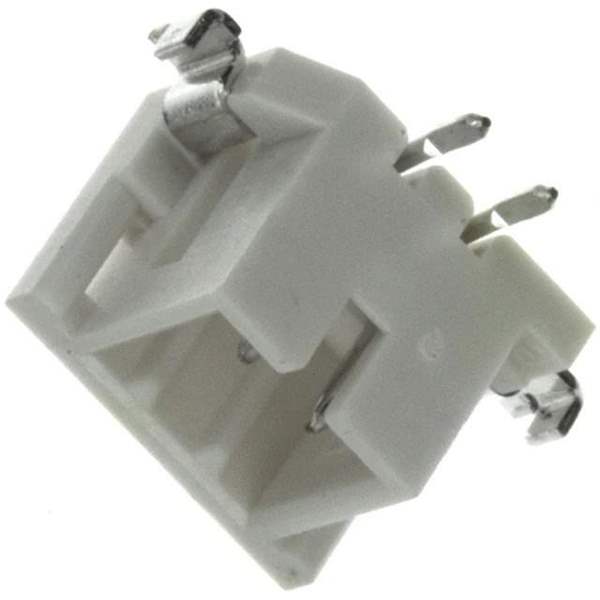

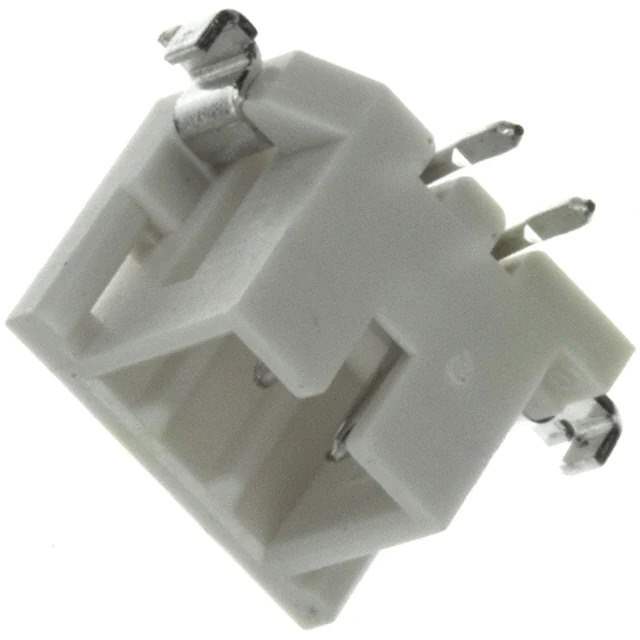

DF3Z-2P-2V(21) Real Image
Same model may have multiple batches, images only for reference.

DF3Z-2P-2V(21)

Part No DF3Z-2P-2V(21)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 2POS 2MM / Connector Header Surface Mount 2 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF3
Package Tape & Reel
Product Status Discontinued
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.232" (5.90mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Solder Retention
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 3A
Mated Stacking Heights 7.7mm, 8.4mm
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 868560-DF3Z-2P-2V(21)
Ultra Librarian 3D Model Ultra Librarian DF3Z-2P-2V(21) CAD Model

Description

The DF3Z-2P-2V(21) is a rectangular header connector designed for male pin applications. It features a pitch of 0.079" (2.00mm) and has 2 positions in a 1-row configuration.

  • Pitch: 0.079" (2.00mm)
  • Positions: 2
  • Rows: 1
  • Features: Board guides and solder retention
  • Contact Type: Male pin
  • Contact Finish: Tin
  • Mounting: Surface mount
  • Height Above Board: 0.232" (5.90mm)
  • Packaging: Tape and reel
  • Package Quantity: 1,000 pcs
  • Current Rating: 3A
  • Operating Temperature Range: -55°C to 105°C
  • Status: Discontinued
  • Manufacturer: Hirose Electric Co Ltd
