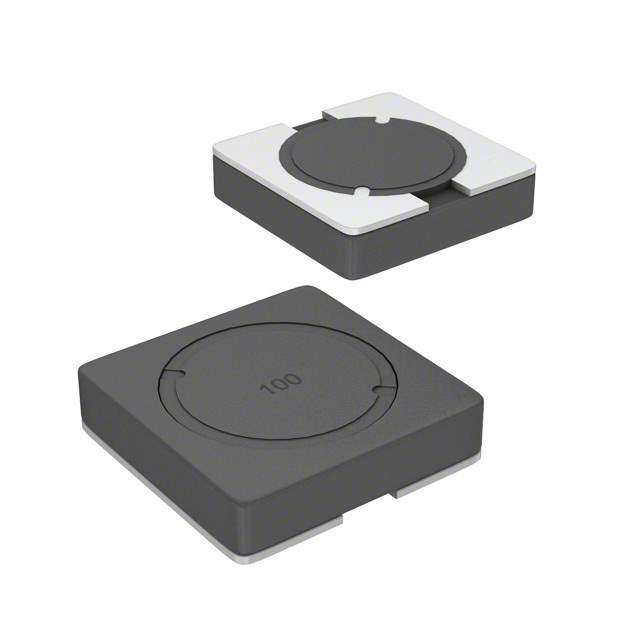

Same model may have multiple batches, images only for reference.

SRR4011-470YL

Name: SRR4011-470YL
Brand: Bourns Inc.
SKU: 1273337
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR4011-470YL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR4011-470YL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR4011
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	47 µH
Tolerance	±30%
Current Rating (Amps)	480 mA
Current - Saturation (Isat)	400mA
Shielding	Shielded
DC Resistance (DCR)	1.25Ohm Max
Q @ Freq	10 @ 2.52MHz
Frequency - Self Resonant	18MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max)	0.051" (1.30mm)
Base Product Number	SRR4011
Other Names	SRR4011-470YLCT,SRR4011-470YLDKR,SRR4011-470YLTR,SRR4011-470YL
Standard Package	1,200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273337-SRR4011-470YL
Ultra Librarian 3D Model	Ultra Librarian SRR4011-470YL CAD Model

Alternative Products

Description

The Bourns Inc. SRR4011-470YL is a drum core wirewound inductor with a shielded package.

Inductance: 47 µH
Height: 0.051"
Tolerance: ±30%
Q @ Freq: 10 @ 2.52MHz
Frequency Self-Resonant: 18MHz
DC Resistance (DCR): 1.25Ohm Max
Operating Temperature Range: -40°C ~ 125°C
Current Rating: 480 mA
Inductance Frequency-Test: 100 kHz
