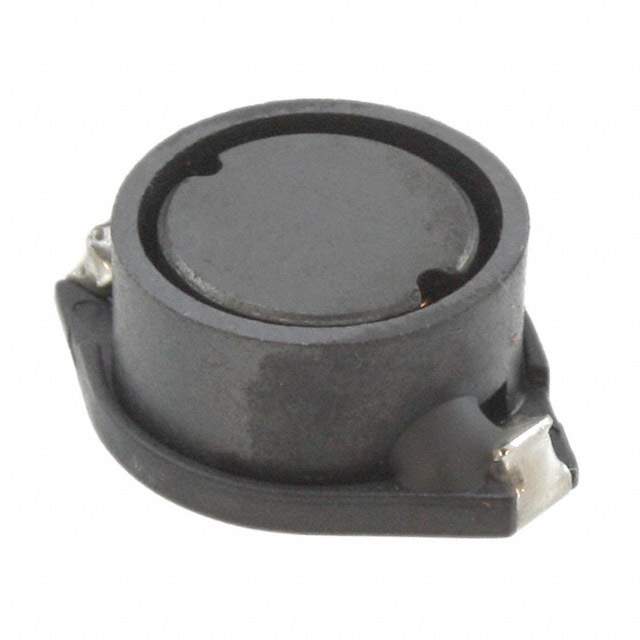

SRR1806-330M Real Image
Same model may have multiple batches, images only for reference.

SRR1806-330M

Part No SRR1806-330M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1806-330M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1806
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 5A
Shielding Shielded
DC Resistance (DCR) 83mOhm
Q @ Freq 44 @ 2.52MHz
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max) 0.280" (7.10mm)
Base Product Number SRR1806
Other Names -SRR1806-330M,-SRR1806-330MCT,-SRR1806-330M,SRR1806330M,SRR1806-330MCT,-SRR1806-330MTR,SRR1806-330M,SRR1806-330MTR
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273362-SRR1806-330M
Ultra Librarian 3D Model Ultra Librarian SRR1806-330M CAD Model

Description

The SRR1806-330M is an electronic component manufactured by Bourns Inc.

  • Supply: Limited
  • Current Rating: 2.5A
  • Type: Drum core, wirewound
  • Shielding: Shielded
  • Height-Seated (Max): 0.280" (7.10mm)
  • Win Source Part Number: 1273362-SRR1806-330M
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
