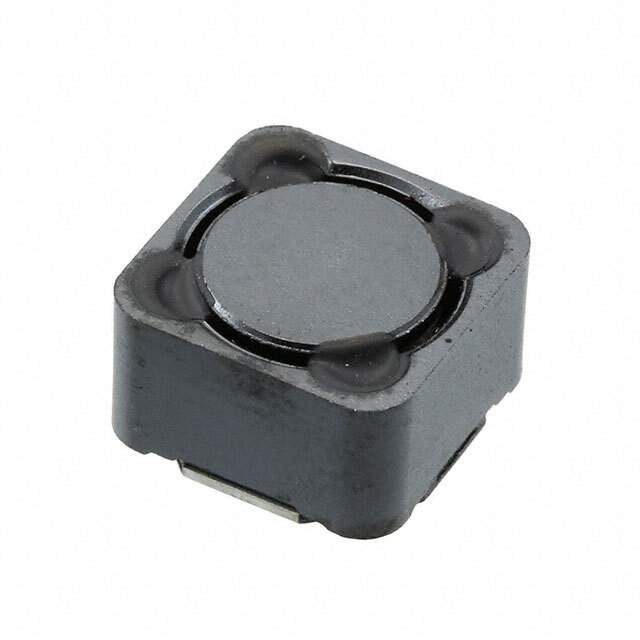

SRR1280A-4R7Y Real Image
Same model may have multiple batches, images only for reference.

SRR1280A-4R7Y

Part No SRR1280A-4R7Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1280A-4R7Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1280A
Package Tape & Reel
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±30%
Current Rating (Amps) 8.2 A
Current - Saturation (Isat) 8.8A
Shielding Shielded
DC Resistance (DCR) 15.5mOhm Max
Q @ Freq 22 @ 7.96MHz
Frequency - Self Resonant 30MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Supplier Device Package 1280
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Base Product Number SRR1280A
Other Names SRR1280A-4R7YTR,SRR1280A-4R7YDKR,SRR1280A-4R7Y,SRR1280A-4R7YCT
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273376-SRR1280A-4R7Y
Ultra Librarian 3D Model Ultra Librarian SRR1280A-4R7Y CAD Model

Description

The Bourns Inc. SRR1280A is a shielded fixed inductor that is rated for AEC-Q200, with a tolerance of ±30%.

  • Inductance: 4.7 μH
  • DC Resistance (DCR): 15.5mΩ max
  • Current Rating: 8.2A
  • Package/Case: Nonstandard package/case
  • Mounting: Tape and reel mounted
  • Core Material: Ferrite
  • Q @ Freq: 22 @ 7.96MHz
  • Frequency Self-Resonant: 30MHz
  • Series: SRR1280A series
  • Height: 0.315 inches (8mm)
  • Dimension: 0.492 inches L x 0.492 inches W (12.50mm x 12.50mm)
  • ECCN: EAR99
  • REACH: REACH unaffected
