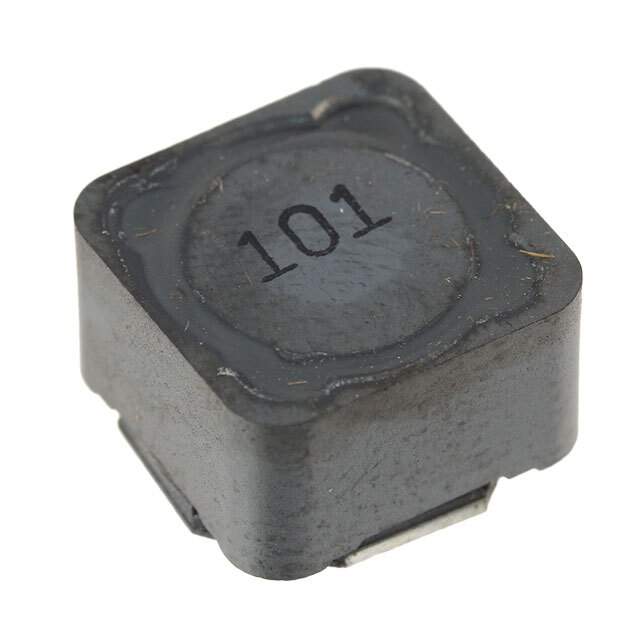

SRR1280-391K Real Image
Same model may have multiple batches, images only for reference.

SRR1280-391K

Part No SRR1280-391K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1280-391K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1280
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 390 µH
Tolerance ±10%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.4A
Shielding Shielded
DC Resistance (DCR) 680mOhm Max
Q @ Freq 20 @ 796kHz
Frequency - Self Resonant 2.7MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Base Product Number SRR1280
Other Names SRR1280-391KL,-SRR1280-391KL,-SRR1280-391KL,SRR1280391K,SRR1280-391KLDKR,-SRR1280-391KLCT,SRR1280-391KLTR,SRR1280-391KL,-SRR1280-391KLTR,SRR1280-391KLCT
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273399-SRR1280-391K
Ultra Librarian 3D Model Ultra Librarian SRR1280-391K CAD Model

Description

The SRR1280-391K is a drum core, wirewound inductor from Bourns Inc. that comes in a tape and reel package.

  • Shielded: Shielded
  • Inductance: 390 µH
  • Tolerance: ±10%
  • Height: 0.315 inches (8.00mm)
  • Standard Package: 400
  • Core Material: Ferrite
  • Q @ Freq: 20 @ 796kHz
  • Frequency Self-Resonant: 2.7MHz
  • DC Resistance (DCR): 680mOhm Max
  • Current Rating (Amps): 1A
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.492 inches L x 0.492 inches W (12.50mm x 12.50mm)
  • ECCN: EAR99
  • REACH: Unaffected
