Same model may have multiple batches, images only for reference.

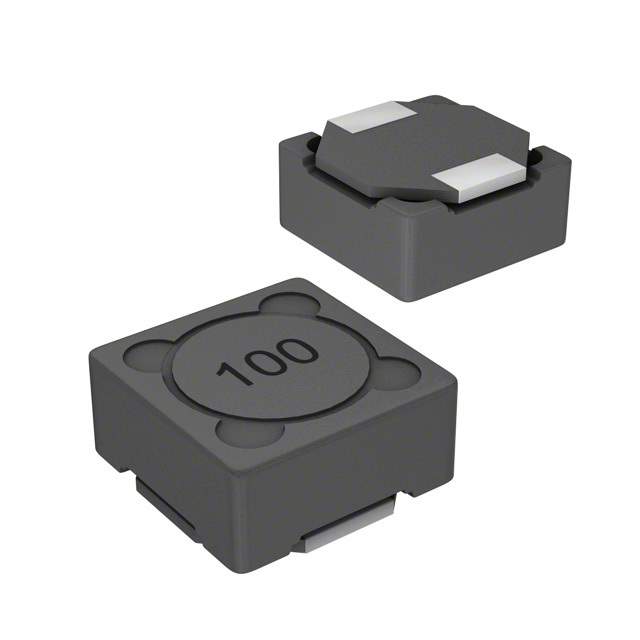

SRR1260-4R7P Real Image
Same model may have multiple batches, images only for reference.

SRR1260-4R7P

Part No SRR1260-4R7P
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1260-4R7P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1260
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance -20%, +40%
Current Rating (Amps) 6.8 A
Current - Saturation (Isat) 7A
Shielding Shielded
DC Resistance (DCR) 15.5mOhm Max
Q @ Freq 19 @ 7.96MHz
Frequency - Self Resonant 36.7MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Base Product Number SRR1260
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273431-SRR1260-4R7P
Ultra Librarian 3D Model Ultra Librarian SRR1260-4R7P CAD Model

Description

The SRR1260-4R7P is a fixed inductor from Bourns Inc.

  • Inductance: 4.7 µH
  • Tolerance: -20%, +40%
  • Current Rating: 6.8 A
  • Mounting: surface mount
  • Shielded: shielded
  • Package: tape and reel
  • Standard Package: 600
  • Maximum Height: 0.256"
  • DC Resistance: 15.5mOhm
  • Q Value: 19 @ 7.96MHz
  • Self-Resonant Frequency: 36.7MHz
