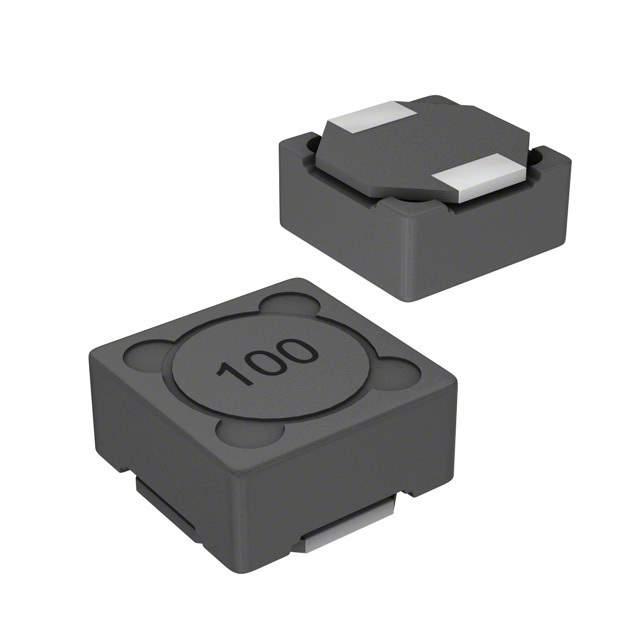

SRR1260-1R2Y Real Image
Same model may have multiple batches, images only for reference.

SRR1260-1R2Y

Part No SRR1260-1R2Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1260-1R2Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1260
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.2 µH
Tolerance ±30%
Current Rating (Amps) 9.2 A
Current - Saturation (Isat) 9.8A
Shielding Shielded
DC Resistance (DCR) 8mOhm Max
Q @ Freq 18 @ 7.96MHz
Frequency - Self Resonant 91.1MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Base Product Number SRR1260
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273432-SRR1260-1R2Y
Ultra Librarian 3D Model Ultra Librarian SRR1260-1R2Y CAD Model

Description

The SRR1260 is a fixed inductor with a drum core wirewound design.

  • Manufacturer: Bourns Inc.
  • Type: Shielded
  • Inductance: 1.2 µH
  • Height (max): 0.256” (6.50mm)
  • Tolerance: ±30%
  • Package: Tape and reel
  • Standard Package: 600
  • Mounting: SMD
  • Package/Case: Nonstandard
  • Q @ Freq: 18 @ 7.96MHz
  • Frequency - Self Resonant: 91.1MHz
  • DC Resistance (DCR): 8mOhm Max
  • Current Rating (Amps): 9.2A
  • Dimension: 0.492” L x 0.492” W (12.50mm x 12.50mm)
  • ECCN: EAR99
