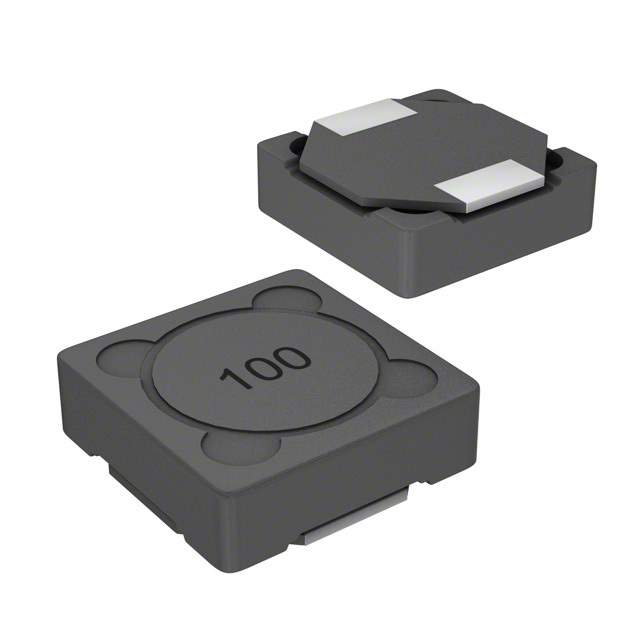

Same model may have multiple batches, images only for reference.
SRR1240-220M Real Image
Same model may have multiple batches, images only for reference.

SRR1240-220M

Part No SRR1240-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 3A 67.5 MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 3 A 67.5mOhm Max Nonstandard
Datasheet
SRR1240-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 2.6A
Shielding Shielded
DC Resistance (DCR) 67.5mOhm Max
Q @ Freq 18 @ 2.52MHz
Frequency - Self Resonant 16MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRR1240
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number -SRR1240-220MCT,-SRR1240-220M-ND,SRR1240-220M-ND,SRR1240-220MDKR,SRR1240220M,-SRR1240-220M,-SRR1240-220MTR,SRR1240-220MCT,SRR1240-220MTR
Standard Package 800
Win Source Part Number 1330323-SRR1240-220M
Ultra Librarian 3D Model Ultra Librarian SRR1240-220M CAD Model

Description

The Bourns Inc. SRR1240-220M is a shielded drum core, wirewound fixed inductor with an inductance of 22 µH and a tolerance of ±20%.

  • Manufacturer: Bourns Inc.
  • Inductance: 22 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance (DCR): 67.5mOhm max
  • Q @ Freq: 18 @ 2.52MHz
  • Frequency - Self-Resonant: 16MHz
  • Current Rating: 3A
  • Current Saturation (Isat): 2.6A
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Case/Package: Nonstandard
  • Standard Package: 800
  • ROHS3 Compliant: Yes
  • REACH Unaffected: Yes
