Same model may have multiple batches, images only for reference.

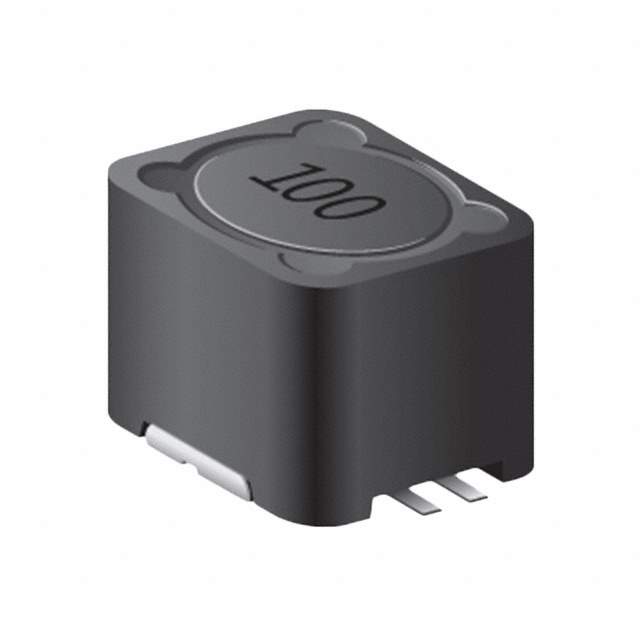

SRR1210A-5R6Y Real Image
Same model may have multiple batches, images only for reference.

SRR1210A-5R6Y

Part No SRR1210A-5R6Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1210A-5R6Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1210A
Package Tape & Reel
Material - Core Ferrite
Inductance 5.6 µH
Tolerance ±30%
Current Rating (Amps) 8 A
Current - Saturation (Isat) 8.5A
Shielding Shielded
DC Resistance (DCR) 13.5mOhm Max
Q @ Freq 12 @ 7.96MHz
Frequency - Self Resonant 28MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Base Product Number SRR1210A
Other Names SRR1210A-5R6YDKR,SRR1210A-5R6YTR,SRR1210A-5R6YCT
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273473-SRR1210A-5R6Y
Ultra Librarian 3D Model Ultra Librarian SRR1210A-5R6Y CAD Model

Description

The SRR1210A series from Bourns Inc. is a shielded fixed inductor.

  • Inductance: 5.6 µH
  • Tolerance: ±30%
  • Mounting Type: SMD (SMT)
  • Core Material: Ferrite
  • DC Resistance (DCR): 13.5mOhm max
  • Temperature Range: -40°C to 125°C
  • Rated Current: 8 A
  • Self-Resonant Frequency: 28MHz
  • Package/Case: Nonstandard
  • Height Seated (Max): 0.394" (10.00mm)
  • Frequency with Q: 7.96MHz with a Q of 12
