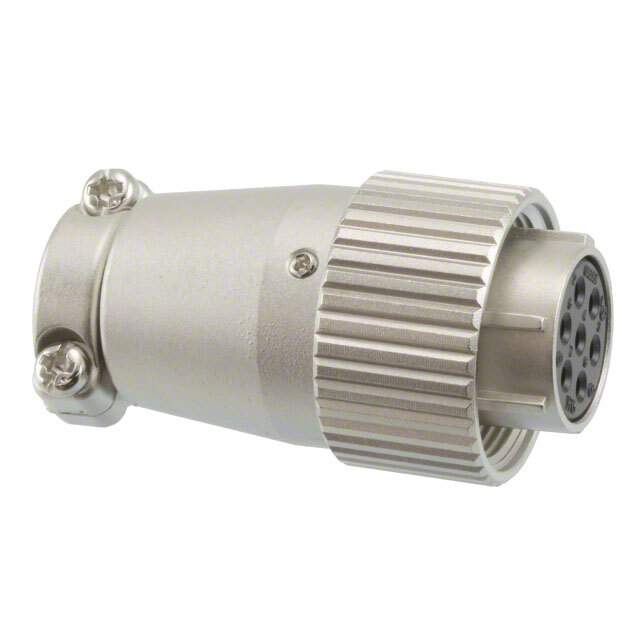

JR16PK-7S(71) Real Image
Same model may have multiple batches, images only for reference.

JR16PK-7S(71)

Part No JR16PK-7S(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN PLUG FMALE 7P SOLDER CUP / 7 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
JR16PK-7S(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Hirose Electric Co Ltd
Series JR
Package Bulk
Product Status Last Time Buy
Connector Type Plug, Female Sockets
Number of Positions 7
Shell Size - Insert 16
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation Keyed
Primary Material Metal
Shell Material Aluminum Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Features Backshell, Cable Clamp, Coupling Nut
Shielding Unshielded
Current Rating (Amps) 10A
Voltage Rating 250VAC, 350VDC
Cable Opening 0.453" (11.51mm)
Temperature Range - Operating -25°C ~ 85°C
Backshell Material, Plating Aluminum Alloy, Nickel
Contact Material Copper Alloy
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Insert Material Phenol Formaldehyde (PF)
Base Product Number JR16
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1350127-JR16PK-7S(71)
Ultra Librarian 3D Model Ultra Librarian JR16PK-7S(71) CAD Model

Description

The Hirose Electric Co Ltd JR16PK-7S(71) is a 7-position circular connector assembly that features a female socket plug connector type and a threaded fastening type. The connector has a keyed orientation and a shell size of 16.

  • Number of Positions: 7
  • Connector Type: Plug, Female Socket
  • Fastening Type: Threaded
  • Orientation: Keyed
  • Shell Size - Insert: 16
  • Termination: Solder Cup
  • Contact Material: Copper Alloy
  • Voltage Rating: 250VAC, 350VDC
  • Current Rating: 10A
  • Contact Finish: Silver
  • Contact Finish Thickness: 78.7µin (2.00µm)
  • Shell Material: Aluminum Alloy
  • Shell Finish: Nickel
  • Insert Material: Phenol Formaldehyde (PF)
  • Cable Opening: 0.453" (11.51mm)
  • Mounting Type: Free Hanging (In-Line)
  • Operating Temperature: -25°C to 85°C
  • Manufacturer: Hirose Electric Co Ltd
