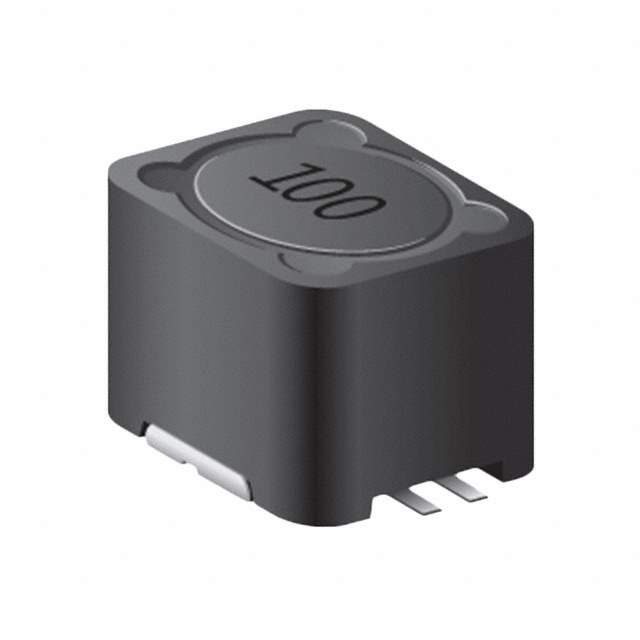

SRR1210A-101M Real Image
Same model may have multiple batches, images only for reference.

SRR1210A-101M

Part No SRR1210A-101M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1210A-101M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1210A
Package Tape & Reel
Material - Core Ferrite
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 2.2A
Shielding Shielded
DC Resistance (DCR) 135mOhm Max
Q @ Freq 16 @ 796kHz
Frequency - Self Resonant 3MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Base Product Number SRR1210A
Other Names SRR1210A-101MDKR,SRR1210A-101MCT,SRR1210A-101MTR
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273486-SRR1210A-101M
Ultra Librarian 3D Model Ultra Librarian SRR1210A-101M CAD Model

Description

The SRR1210A series from Bourns Inc. is a shielded fixed inductor with an inductance of 100 µH and a tolerance of ±20%.

  • DC Resistance (DCR): 135mOhm Max
  • Current Rating (Amps): 2.5 A
  • Height: 0.394" (10.00mm)
  • Dimension: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Suitable for: AEC-Q200 rated applications
  • Package: Nonstandard
  • Temperature Range: -40°C ~ 125°C
  • ECCN: EAR99 compliant
