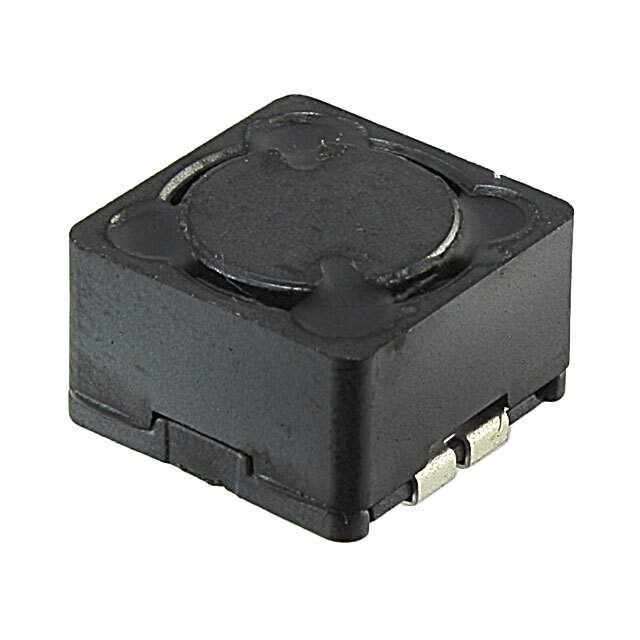

Same model may have multiple batches, images only for reference.

SRR1208-101Y

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR1208-101Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR1208-101Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR1208
Package	Tape & Reel (TR)
Product Status	Obsolete
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	100 µH
Tolerance	±15%
Current Rating (Amps)	1.5 A
Current - Saturation (Isat)	2.1A
Shielding	Shielded
DC Resistance (DCR)	170mOhm Max
Q @ Freq	15 @ 796kHz
Frequency - Self Resonant	4MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max)	0.335" (8.50mm)
Base Product Number	SRR1208
Standard Package	400
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273504-SRR1208-101Y
Ultra Librarian 3D Model	Ultra Librarian SRR1208-101Y CAD Model

Alternative Products

Description

The Bourns SRR1208-101Y is a drum core, wirewound inductor that comes in a nonstandard package.

Shielded: yes
Inductance: 100 µH
Tolerance: ±15%
Core Material: ferrite
Q @ Freq: 15 @ 796kHz
Frequency Self-Resonates: 4MHz
DC Resistance (DCR): 170mOhm Max
Maximum Current Rating: 1.5 A
Inductance Frequency-Test: 1 kHz
Operating Temperature: -40°C to 125°C
Product Status: obsolete
Standard Package: 400
