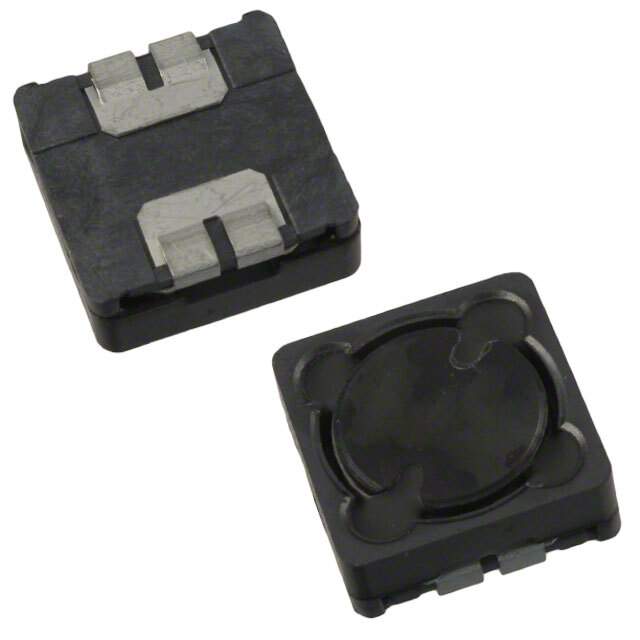

Same model may have multiple batches, images only for reference.

SRR1205-121KL

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR1205-121KL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR1205-121KL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR1205
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	120 µH
Tolerance	±10%
Current Rating (Amps)	900 mA
Current - Saturation (Isat)	1.6A
Shielding	Shielded
DC Resistance (DCR)	500mOhm Max
Q @ Freq	10 @ 796kHz
Frequency - Self Resonant	4.5MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max)	0.217" (5.50mm)
Base Product Number	SRR1205
Standard Package	600
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273542-SRR1205-121KL
Ultra Librarian 3D Model	Ultra Librarian SRR1205-121KL CAD Model

Alternative Products

Description

The SRR1205-121KL is a drum core, wirewound inductor from Bourns Inc.

Shielded: Yes
Inductance: 120 µH
Tolerance: ±10%
Core Material: Ferrite
Q @ Freq: 10 @ 796kHz
Frequency-Self Resonant: 4.5MHz
DC Resistance (DCR): 500mOhm Max
Current Rating: 900 mA
Package: Nonstandard
Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
Applications: Power supplies, filtering, and DC-DC converters
