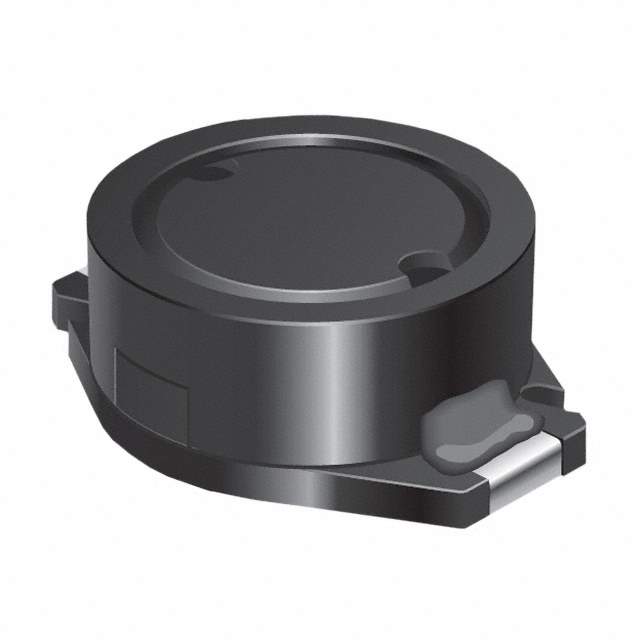

SRR1003-560M Real Image
Same model may have multiple batches, images only for reference.

SRR1003-560M

Part No SRR1003-560M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1003-560M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1003
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 56 µH
Tolerance ±20%
Current Rating (Amps) 520 mA
Current - Saturation (Isat) 1.3A
Shielding Shielded
DC Resistance (DCR) 680mOhm Max
Q @ Freq 15 @ 2.52MHz
Frequency - Self Resonant 13MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.406" W (12.70mm x 10.30mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRR1003
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273593-SRR1003-560M
Ultra Librarian 3D Model Ultra Librarian SRR1003-560M CAD Model

Description

The SRR1003-560M is a drum core, wirewound inductor from Bourns Inc. with a shielding feature.

  • Inductance: 56 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q @ Freq: 15 @ 2.52MHz
  • Self-Resonant Frequency: 13MHz
  • Package: Tape & Reel (TR)
  • Case: Non-standard
  • DC Resistance (DCR): 680mOhm Max
  • Current Rating (Amps): 520mA
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.500" L x 0.406" W (12.70mm x 10.30mm)
  • REACH: Unaffected
  • ECCN: EAR99
