Same model may have multiple batches, images only for reference.

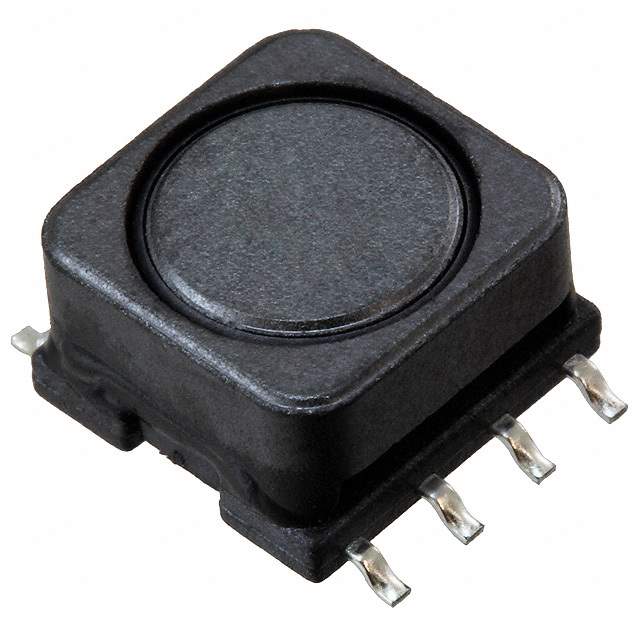

SRR0906-6R8ML Real Image
Same model may have multiple batches, images only for reference.

SRR0906-6R8ML

Part No SRR0906-6R8ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0906-6R8ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0906
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 2.3 A
Current - Saturation (Isat) 3.4A
Shielding Shielded
DC Resistance (DCR) 50mOhm Max
Q @ Freq 23 @ 7.96MHz
Frequency - Self Resonant 38MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case 8-SMD, Gull Wing
Dimension 0.394" L x 0.374" W (10.00mm x 9.50mm)
Height - Seated (Max) 0.248" (6.30mm)
Base Product Number SRR0906
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273641-SRR0906-6R8ML
Ultra Librarian 3D Model Ultra Librarian SRR0906-6R8ML CAD Model

Description

The SRR0906 series of inductors from Bourns Inc. are high-quality components designed to provide excellent performance in a range of applications.

  • Construction: Drum core, wirewound
  • Shielding: Shielded
  • Inductance: 6.8 μH
  • Tolerance: ±20%
  • Current Rating: 2.3 A
  • DC Resistance (DCR): 50 mOhm max
  • Q @ Freq: 23 @ 7.96 MHz
  • Frequency - Self-Resonant: 38 MHz
  • Package/Case: 8-SMD, Gull Wing
  • Temperature Range: -40°C to 125°C
