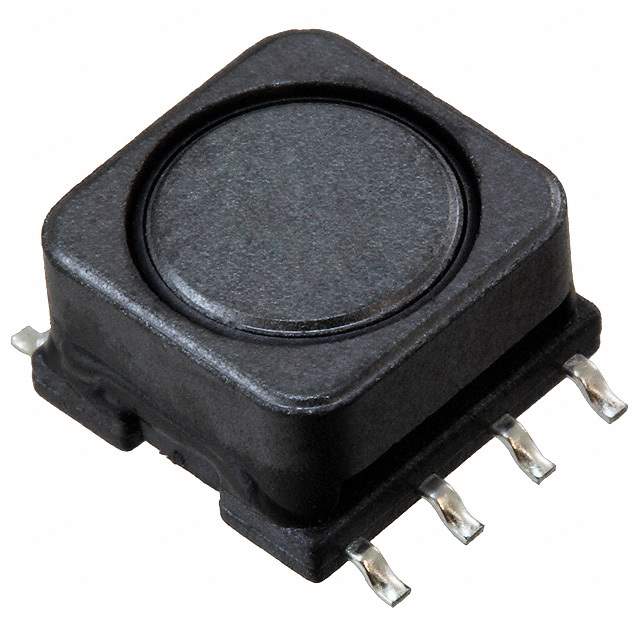

SRR0906-3R5ML Real Image
Same model may have multiple batches, images only for reference.

SRR0906-3R5ML

Part No SRR0906-3R5ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0906-3R5ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0906
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.5 µH
Tolerance ±20%
Current Rating (Amps) 2.9 A
Current - Saturation (Isat) 5.2A
Shielding Shielded
DC Resistance (DCR) 36mOhm Max
Q @ Freq 23 @ 7.96MHz
Frequency - Self Resonant 80MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case 8-SMD, Gull Wing
Dimension 0.394" L x 0.374" W (10.00mm x 9.50mm)
Height - Seated (Max) 0.248" (6.30mm)
Base Product Number SRR0906
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273650-SRR0906-3R5ML
Ultra Librarian 3D Model Ultra Librarian SRR0906-3R5ML CAD Model

Description

The SRR0906-3R5ML is a drum core, wirewound inductor from Bourns Inc.

  • Shielded: Yes
  • Package: Tape and Reel
  • Inductance: 3.5 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q Value: 23 @ 7.96 MHz
  • Frequency of Self-Resonance: 80 MHz
  • DC Resistance (DCR): 36 mOhm Max
  • Current Rating: 2.9 A
  • Operating Temperature: -40°C to 125°C
  • Dimensions: 0.394" L x 0.374" W (10.00mm x 9.50mm)
  • Ideal for: Inductors, coils, and chokes
