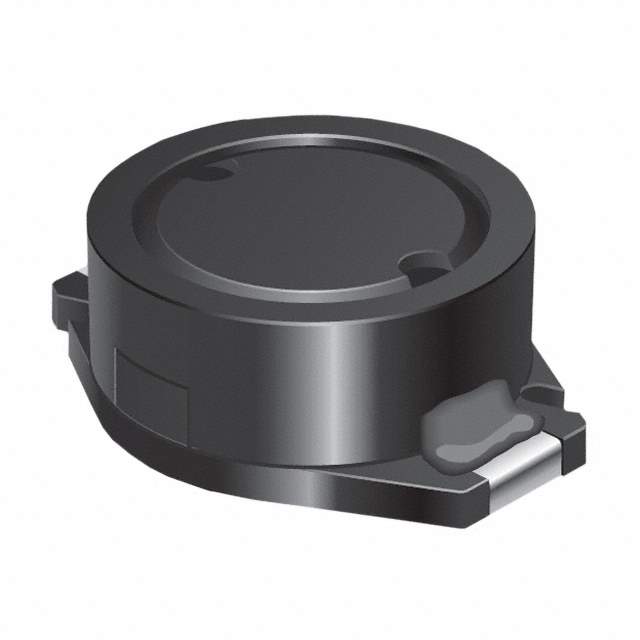

SRR0804-220Y Real Image
Same model may have multiple batches, images only for reference.

SRR0804-220Y

Part No SRR0804-220Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0804-220Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0804
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±15%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 1.3A
Shielding Shielded
DC Resistance (DCR) 250mOhm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 22MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.413" L x 0.315" W (10.50mm x 8.00mm)
Height - Seated (Max) 0.150" (3.80mm)
Base Product Number SRR0804
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273708-SRR0804-220Y
Ultra Librarian 3D Model Ultra Librarian SRR0804-220Y CAD Model

Description

The Bourns Inc. SRR0804 series is a drum core, wirewound fixed inductor that comes in a tape and reel package.

  • Shielding Feature: Shielded
  • Inductance: 22 µH
  • Maximum Seated Height: 0.150 inches (3.80mm)
  • Tolerance: ±15%
  • Core Material: Ferrite
  • Q Value: 30 @ 2.52MHz
  • Self-Resonant Frequency: 22MHz
  • DC Resistance (DCR): 250mOhm Max
  • Operating Temperature Range: -40°C ~ 125°C
