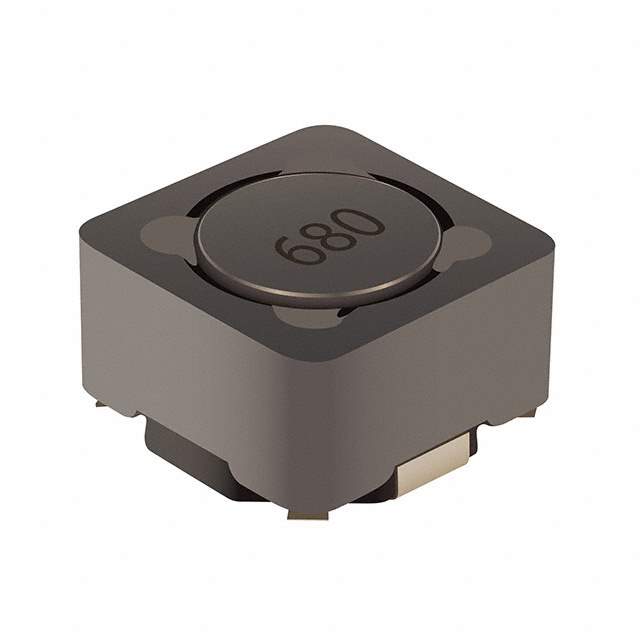

SRR0745A-821M Real Image
Same model may have multiple batches, images only for reference.

SRR0745A-821M

Part No SRR0745A-821M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0745A-821M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0745A
Package Tape & Reel
Material - Core Ferrite
Inductance 820 µH
Tolerance ±20%
Current Rating (Amps) 220 mA
Current - Saturation (Isat) 260mA
Shielding Shielded
DC Resistance (DCR) 3.5Ohm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) 0.185" (4.70mm)
Base Product Number SRR0745A
Other Names SRR0745A-821MTR,SRR0745A-821MDKR,SRR0745A-821MCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273714-SRR0745A-821M
Ultra Librarian 3D Model Ultra Librarian SRR0745A-821M CAD Model

Description

The Bourns Inc. SRR0745A-821M is a fixed inductor with a shielded package and an inductance of 820μH.

  • Tolerance: ±20%
  • Rating: AEC-Q200
  • Maximum Current Rating: 220mA
  • DC Resistance: 3.5ohm max
  • Package: Packaged in tape and reel
  • Mounting: Surface mountable
  • Application: Designed for use in automotive applications
  • Status: Obsolete
