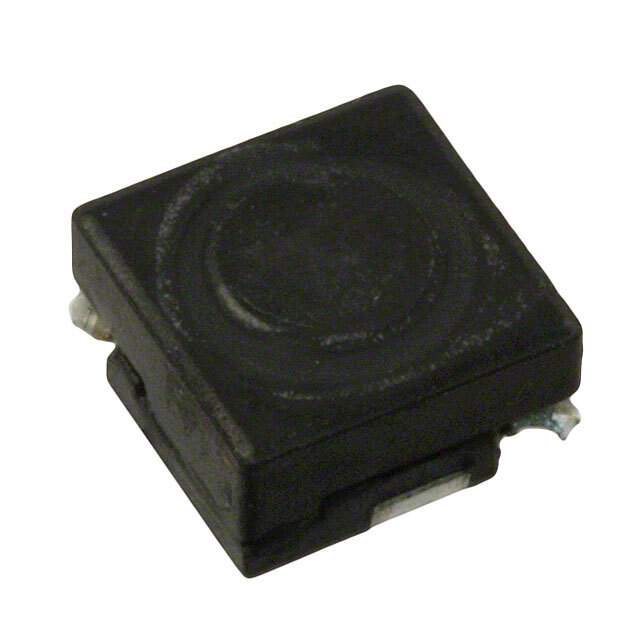

Same model may have multiple batches, images only for reference.

SRR0603-151KL

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR0603-151KL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR0603-151KL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR0603
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	150 µH
Tolerance	±10%
Current Rating (Amps)	250 mA
Current - Saturation (Isat)	390mA
Shielding	Shielded
DC Resistance (DCR)	1.9Ohm Max
Q @ Freq	22 @ 796kHz
Frequency - Self Resonant	8MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard, Corner Terminals
Dimension	0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max)	0.130" (3.30mm)
Base Product Number	SRR0603
Other Names	SRR0603-151KL,SRR0603-151KLDKR,SRR0603-151KLCT,SRR0603-151KLTR
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273765-SRR0603-151KL
Ultra Librarian 3D Model	Ultra Librarian SRR0603-151KL CAD Model

Alternative Products

Description

The Bourns Inc. SRR0603-151KL is a fixed inductor with a drum core wirewound type.

Shielded: Yes
Core Material: ferrite
Inductance: 150 μH
Tolerance: ±10%
DC Resistance: 1.9Ω max
Current Rating: 250mA
Temperature Range: -40°C to 125°C
Height: 0.130" (3.30mm)
Dimension: 0.256" L x 0.256" W (6.50mm x 6.50mm)
Package: nonstandard corner terminals package
Packaging: tape and reel packaging
Suitable for: use in various electronic applications
