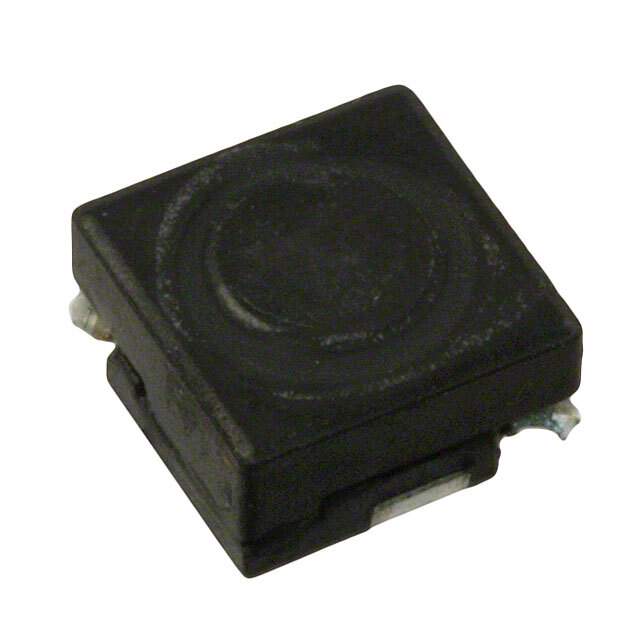

SRR0603-150ML Real Image
Same model may have multiple batches, images only for reference.

SRR0603-150ML

Part No SRR0603-150ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0603-150ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0603
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 900 mA
Current - Saturation (Isat) 1.2A
Shielding Shielded
DC Resistance (DCR) 180mOhm Max
Q @ Freq 16 @ 2.52MHz
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard, Corner Terminals
Dimension 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number SRR0603
Other Names SRR0603-150MLTR,SRR0603-150MLCT,SRR0603-150ML,SRR0603150ML,SRR0603-150MLDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273766-SRR0603-150ML
Ultra Librarian 3D Model Ultra Librarian SRR0603-150ML CAD Model

Description

The Bourns Inc. SRR0603-150ML is a fixed inductor that is part of the SRR0603 series.

  • Type: drum core, wirewound type of inductor
  • Package: tape and reel package
  • Shielded: Yes
  • Inductance: 15 µH
  • Height: seated at a maximum of 0.130 inches or 3.30mm
  • Package or Case: nonstandard and has corner terminals
  • DC Resistance (DCR): 180mOhm Max
  • Tolerance: ±20%
  • Q @ Freq: 16 @ 2.52MHz
  • Frequency - Self-Resonant: 25MHz
  • MSL Level: unlimited
  • Current Rating: 900 mA
