Same model may have multiple batches, images only for reference.

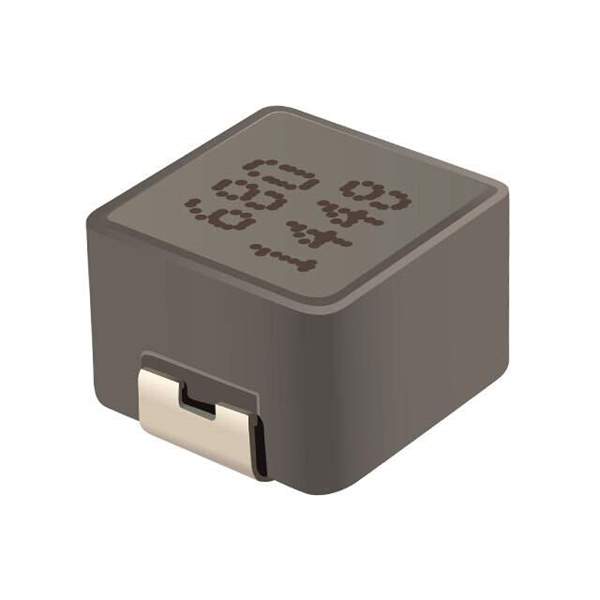

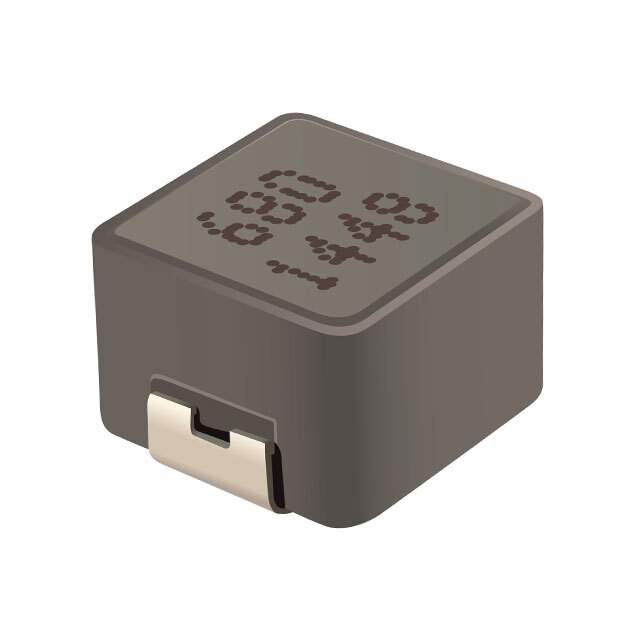

SRP7050TA-R68M Real Image
Same model may have multiple batches, images only for reference.

SRP7050TA-R68M

Part No SRP7050TA-R68M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP7050TA-R68M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7050TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 18 A
Current - Saturation (Isat) 24A
Shielding Shielded
DC Resistance (DCR) 4.5mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 75MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number SRP7050TA
Other Names SRP7050TA-R68MCT,SRP7050TA-R68MTR,SRP7050TA-R68MDKR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273769-SRP7050TA-R68M
Ultra Librarian 3D Model Ultra Librarian SRP7050TA-R68M CAD Model

Description

The Bourns Inc. SRP7050TA-R68M is a fixed inductor belonging to the Inductors, Coils, Chokes category.

  • Type: High-temperature, drum core, wirewound, shielded
  • Inductance: 680 nH
  • Tolerance: ±20%
  • Maximum Current Rating: 18A
  • DC Resistance (DCR): 4.5mOhm Max
  • Applications: Power supplies, DC-DC converters, and filtering circuits
  • Temperature Range: -40°C ~ 150°C
  • Frequency Self-Resonant: 75MHz
