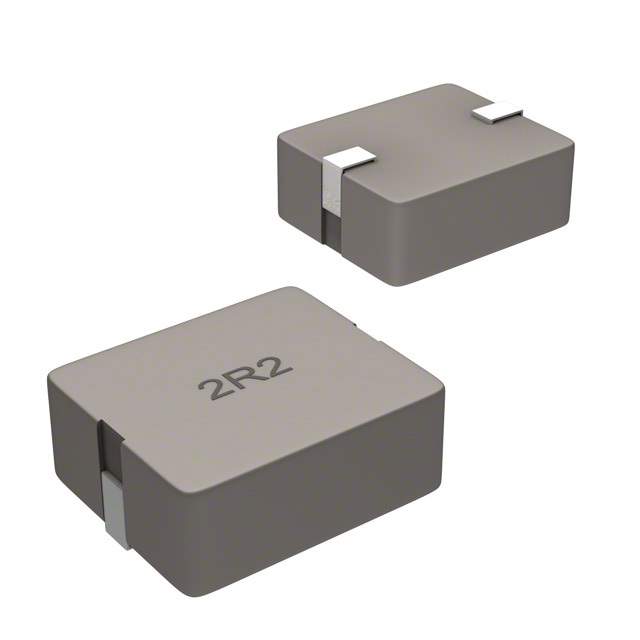

SRP7030-2R2FM

Part No SRP7030-2R2FM
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7030F
Package Tape & Reel
Product Status Obsolete
Type Molded
Material - Core Iron
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 7 A
Current - Saturation (Isat) 11A
Shielding Shielded
DC Resistance (DCR) 20mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.299" L x 0.256" W (7.60mm x 6.50mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRP7030
Other Names SRP70302R2FM,SRP7030-2R2FMDKR,SRP7030-2R2FMCT,SRP7030-2R2FMTR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273780-SRP7030-2R2FM
Ultra Librarian 3D Model Ultra Librarian SRP7030-2R2FM CAD Model

Description

The SRP7030-2R2FM is a fixed inductor manufactured by Bourns Inc.

  • Series: SRP7030F
  • Type: Molded
  • Package: Shielded
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Inductance: 2.2µH
  • Height: 0.118” (3.00mm)
  • Standard Package: 1,000
  • DC Resistance: 20mOhm Max
  • Current Rating: 7A
  • Inductance Frequency-Test: 100kHz
  • Operating Temperature: -55°C to 125°C
  • REACH: Unaffected
  • Status: Obsolete
