Same model may have multiple batches, images only for reference.

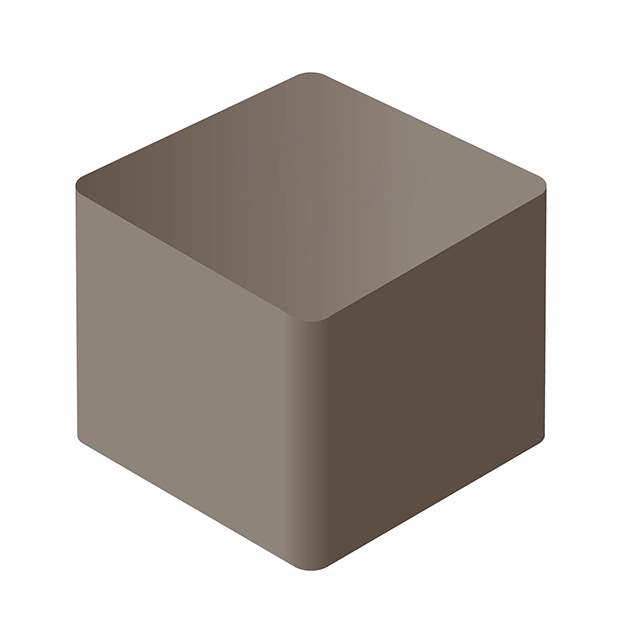

SRP6050CA-3R3M Real Image
Same model may have multiple batches, images only for reference.

SRP6050CA-3R3M

Part No SRP6050CA-3R3M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP6050CA-3R3M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP6050CA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 11 A
Current - Saturation (Isat) 12.5A
Shielding Shielded
DC Resistance (DCR) 12.5mOhm Max
Frequency - Self Resonant 25MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.260" L x 0.252" W (6.60mm x 6.40mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number SRP6050
Other Names SRP6050CA-3R3MCT,SRP6050CA-3R3MDKR,SRP6050CA-3R3MTR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273823-SRP6050CA-3R3M
Ultra Librarian 3D Model Ultra Librarian SRP6050CA-3R3M CAD Model

Description

The SRP6050CA-3R3M is a high-quality inductor that is designed to meet the highest standards.

  • Series: SRP6050CA
  • Type: Drum core, wirewound
  • Package: Tape and reel
  • Shielded: Yes
  • Inductance: 3.3 µH
  • Height: 0.197”
  • Tolerance: ±20%
  • Rated: AEC-Q200
  • DC Resistance: 12.5mOhm Max
  • REACH: Unaffected
  • ECCN: EAR99
