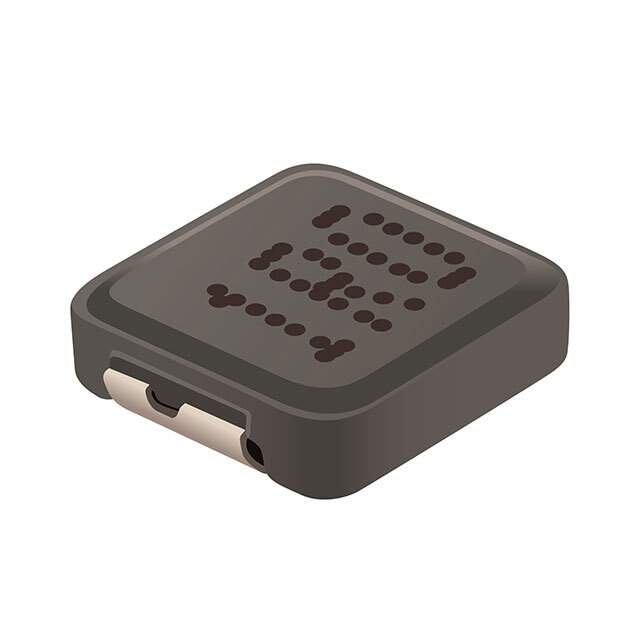

SRP5015TA-100M Real Image
Same model may have multiple batches, images only for reference.

SRP5015TA-100M

Part No SRP5015TA-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP5015TA-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP5015TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 2 A
Current - Saturation (Isat) 2.3A
Shielding Shielded
DC Resistance (DCR) 235mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 21MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number SRP5015TA
Other Names SRP5015TA-100MCT,SRP5015TA-100MTR,SRP5015TA-100MDKR
Standard Package 3,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273913-SRP5015TA-100M
Ultra Librarian 3D Model Ultra Librarian SRP5015TA-100M CAD Model

Description

The Bourns Inc. 1273913-SRP5015TA-100M is a fixed inductor that is used in a variety of applications.

  • Series: SRP5015TA
  • Type: Drum core, wirewound
  • Packaging: Tape and reel
  • Shielding: Shielded
  • Inductance: 10µH
  • Tolerance: ±20%
  • Core Material: Carbonyl powder
  • Q @ Freq: 10 @ 100kHz
  • Frequency Self-Resonant: 21MHz
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 235mOhm Max
  • Temperature Range: -55°C to 150°C
  • ECCN: EAR99
